Product Description

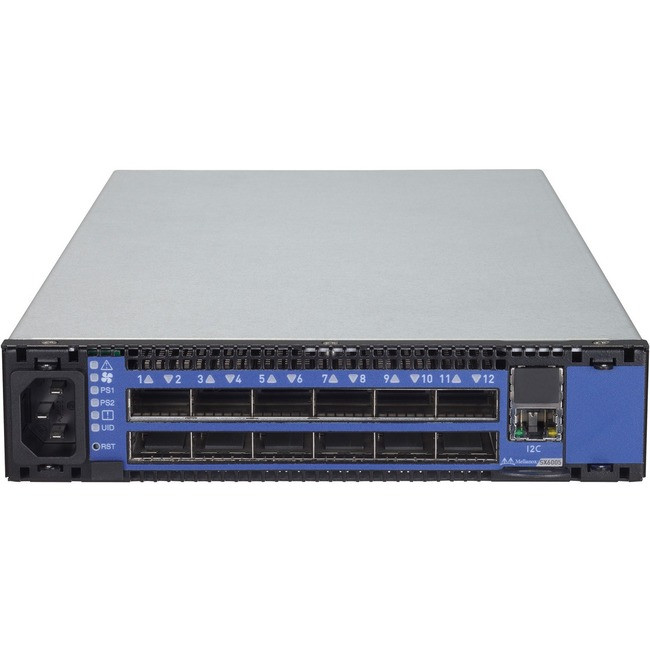

Mellanox SwitchX-2 SX6005 Switch - MSX6005F-1BFS
Specifications
Manufacturer: Mellanox Technologies Ltd
Manufacturer Part Number: MSX6005F-1BFS
Manufacturer Website Address: http://www.mellanox.com
Brand Name: Mellanox
Product Line: SwitchX-2
Product Model: SX6005
Product Name: SwitchX-2 SX6005 Switch
Marketing Information: 12-port Non-blocking Unmanaged 56Gb/s InfiniBand SDN Switch System
The SX6005 switch system provides the highest performing fabric solution in a 1U half-width form factor by delivering up to 1.3Tb/s of non-blocking bandwidth with 200ns port-to-port latency.
SCALING-OUT DATA CENTERS WITH FOURTEEN DATA RATE (FDR) INFINIBAND
Faster servers based on PCIe 3.0, combined with high-performance storage and applications that use increasingly complex computations, are causing data bandwidth requirements to spiral upward. As servers are deployed with next generation processors, embedded system environments and fast storage will need every last bit of bandwidth delivered with Mellanox's next generation of FDR InfiniBand highspeed, low port density smart switches.
FDR
FDR InfiniBand technology moves from 8b/10b encoding to a more efficient 64/66 encoding while increasing the per lane signaling rate to 14Gb/s. Mellanox end-to-end systems can also take advantage of the efficiency of 64/66 encoding using Mellanox FDR-10 link speed supporting 20% more bandwidth over QDR using the same cables/connectors designed for 40GbE.
SUSTAINED NETWORK PERFORMANCE
Built with Mellanox's 6th generation SwitchX®-2 InfiniBand switch device, the SX6005 provides up to twelve 56Gb/s full bi-directional bandwidth per port. The SX6005 is an ideal choice for smaller departmental or back-end clustering uses with high-performance needs, such as storage, data base and GPGPU clusters.
SMART SWITCHES FOR SMART CLUSTERS
The SX6005 has no Field Replaceable Units (FRUs) which simplifies the usage and maintenance of the switch. All connectors and cables including the power connector are on the same side of the switch making it unnecessary to require access to the non-connector side of the switch. A unique rail mounting kit allows two SX6005 switches to be mounted side-by-side in the same 1U space while allowing the switches to be serviced independently using less rack space for redundant switch configurations.
The SX6005 supports reversible airflow allowing it to fit into data centers with different thermal designs.
Product Type: InfiniBand Switch
Interfaces/Ports
Number of Infiniband Ports: 12
Media & Performance
Data Transfer Rate: 56 Gbit/s
I/O Expansions
Expansion Slot Type: QSFP+
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7"
Width: 7.9"
Depth: 15.7"
Weight (Approximate): 6.60 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Manufacturer: Mellanox Technologies Ltd
Manufacturer Part Number: MSX6005F-1BFS
Manufacturer Website Address: http://www.mellanox.com
Brand Name: Mellanox
Product Line: SwitchX-2
Product Model: SX6005
Product Name: SwitchX-2 SX6005 Switch
Marketing Information: 12-port Non-blocking Unmanaged 56Gb/s InfiniBand SDN Switch System
The SX6005 switch system provides the highest performing fabric solution in a 1U half-width form factor by delivering up to 1.3Tb/s of non-blocking bandwidth with 200ns port-to-port latency.
SCALING-OUT DATA CENTERS WITH FOURTEEN DATA RATE (FDR) INFINIBAND
Faster servers based on PCIe 3.0, combined with high-performance storage and applications that use increasingly complex computations, are causing data bandwidth requirements to spiral upward. As servers are deployed with next generation processors, embedded system environments and fast storage will need every last bit of bandwidth delivered with Mellanox's next generation of FDR InfiniBand highspeed, low port density smart switches.
FDR
FDR InfiniBand technology moves from 8b/10b encoding to a more efficient 64/66 encoding while increasing the per lane signaling rate to 14Gb/s. Mellanox end-to-end systems can also take advantage of the efficiency of 64/66 encoding using Mellanox FDR-10 link speed supporting 20% more bandwidth over QDR using the same cables/connectors designed for 40GbE.
SUSTAINED NETWORK PERFORMANCE
Built with Mellanox's 6th generation SwitchX®-2 InfiniBand switch device, the SX6005 provides up to twelve 56Gb/s full bi-directional bandwidth per port. The SX6005 is an ideal choice for smaller departmental or back-end clustering uses with high-performance needs, such as storage, data base and GPGPU clusters.
SMART SWITCHES FOR SMART CLUSTERS
The SX6005 has no Field Replaceable Units (FRUs) which simplifies the usage and maintenance of the switch. All connectors and cables including the power connector are on the same side of the switch making it unnecessary to require access to the non-connector side of the switch. A unique rail mounting kit allows two SX6005 switches to be mounted side-by-side in the same 1U space while allowing the switches to be serviced independently using less rack space for redundant switch configurations.
The SX6005 supports reversible airflow allowing it to fit into data centers with different thermal designs.
Product Type: InfiniBand Switch
Interfaces/Ports
Number of Infiniband Ports: 12
Media & Performance
Data Transfer Rate: 56 Gbit/s
I/O Expansions
Expansion Slot Type: QSFP+
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7"
Width: 7.9"
Depth: 15.7"
Weight (Approximate): 6.60 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
