Product Description

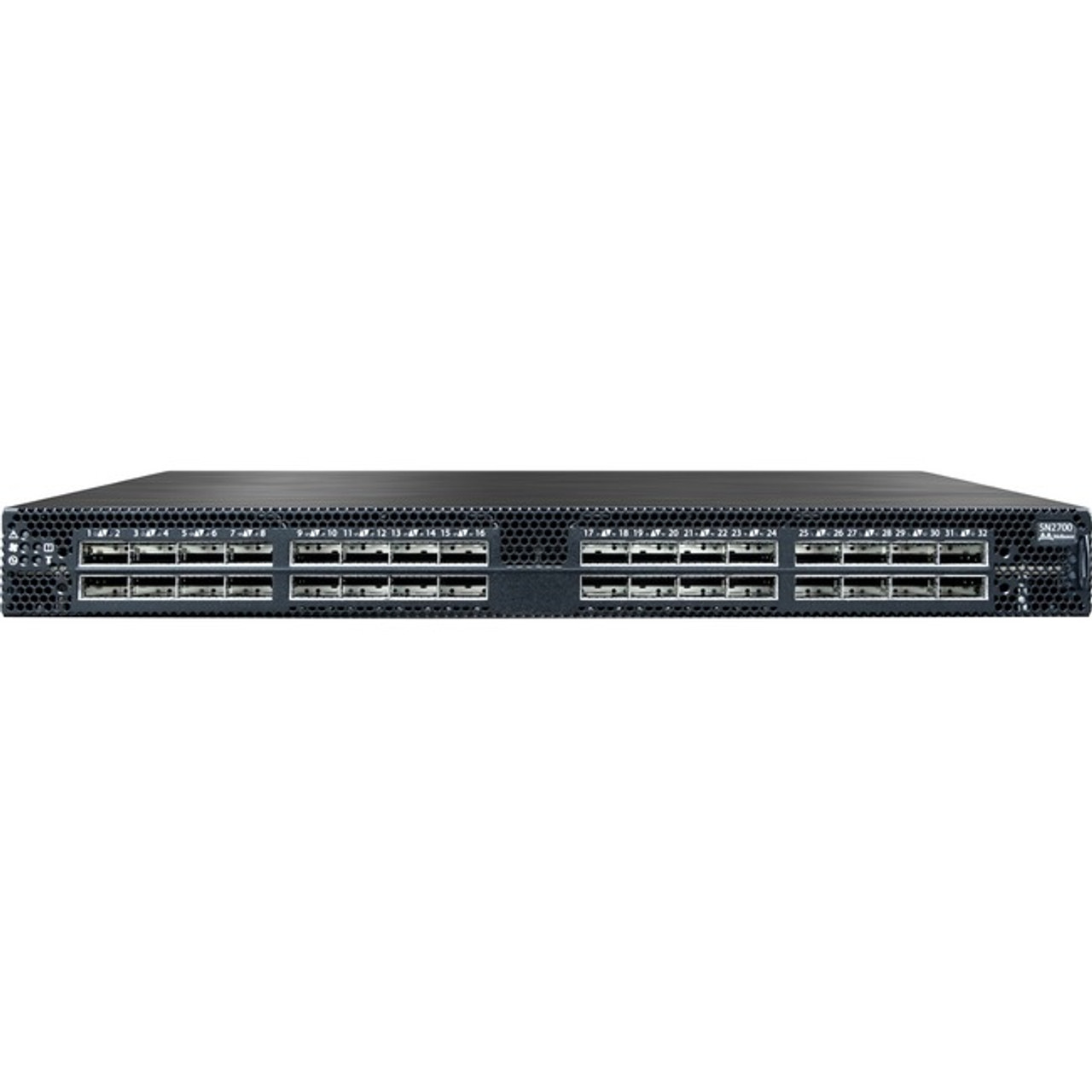

Mellanox SN2700 Open Ethernet Switch - MSN2700-CS2FC
Specifications
Manufacturer: Mellanox Technologies Ltd
Manufacturer Part Number: MSN2700-CS2FC
Manufacturer Website Address: http://www.mellanox.com
Brand Name: Mellanox
Product Line: Spectrum
Product Model: SN2700
Product Name: SN2700 Open Ethernet Switch
Marketing Information: Mellanox SN2700 provides the most predictable, highest density 100GbE switching platform for the growing demands of today's data centers.
The SN2700 switch is an ONIE (Open Network Install Environment) based platform for allowing a multitude of operating systems to be mounted on it and utilizing the advantages of Open Networking and the capabilities of the Mellanox Spectrum™ ASIC.
The SN2700 has three modes of operation. It can be provided preinstalled with Mellanox Onyx™ (successor to MLNX-OS Ethernet), a home-grown operating system utilizing common networking user experiences and industry standard CLI. It can come preinstalled with Cumulus® Linux, a revolutionary operating system taking the Linux user experience from servers to switches and providing a rich routing functionality for large scale applications. Finally, it can be provided with a bare ONIE image ready to be installed with the aforementioned or other ONIE-based operating systems.
The SN2700 switch is an ideal spine and top-of-rack (ToR) solution, allowing maximum flexibility, with port speeds spanning from 10Gb/s to 100Gb/s per port and port density that enables full rack connectivity to any server at any speed. The uplink ports allow a variety of blocking ratios that suit any application requirement.
Powered by the Spectrum ASIC and packed with 32 ports running at 100GbE, the SN2700 carries a whopping throughput of 6.4Tb/s with a landmark 9.52Bpps processing capacity in a compact 1RU form factor.
Keeping with the Mellanox tradition of setting performance record switch systems, the SN2700 introduces the world's lowest latency for a 100GbE switching and routing element, and does so while having the lowest power consumption in the market. With the SN2700, the use of 25, 40, 50 and 100GbE in large scale is enabled without changing power infrastructure facilities.
The SN2700 is part of Mellanox's complete end-to-end solution which provides 10GbE through 100GbE interconnectivity within the data center. Other devices in this solution include ConnectX®-4 based network interface cards, and LinkX™ copper or fiber cabling. This end-to-end solution is topped with Mellanox NEO™, a management application that relieves some of the major obstacles when deploying a network. NEO enables a fully certified and interoperable design, speeds up time to service and eventually speeds up RoI.
The SN2700 introduces superior hardware capabilities including dynamic flexible shared buffers and predictable wire speed performance with no packet loss for any packet size.
Product Type: Switch Chassis
Interfaces/Ports
Uplink Port: No
Modular: Yes
Stack Port: No
Port/Expansion Slot Details: 32 x 100 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology: 100 Gigabit Ethernet
Network Technology: 100GBase-X
I/O Expansions
Number of Total Expansion Slots: 32
Expansion Slot Type: QSFP28
Shared SFP Slot: No
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:
Height: 1.7"
Width: 16.8"
Depth: 27"
Weight (Approximate): 24.47 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Manufacturer: Mellanox Technologies Ltd
Manufacturer Part Number: MSN2700-CS2FC
Manufacturer Website Address: http://www.mellanox.com
Brand Name: Mellanox
Product Line: Spectrum
Product Model: SN2700
Product Name: SN2700 Open Ethernet Switch
Marketing Information: Mellanox SN2700 provides the most predictable, highest density 100GbE switching platform for the growing demands of today's data centers.
The SN2700 switch is an ONIE (Open Network Install Environment) based platform for allowing a multitude of operating systems to be mounted on it and utilizing the advantages of Open Networking and the capabilities of the Mellanox Spectrum™ ASIC.
The SN2700 has three modes of operation. It can be provided preinstalled with Mellanox Onyx™ (successor to MLNX-OS Ethernet), a home-grown operating system utilizing common networking user experiences and industry standard CLI. It can come preinstalled with Cumulus® Linux, a revolutionary operating system taking the Linux user experience from servers to switches and providing a rich routing functionality for large scale applications. Finally, it can be provided with a bare ONIE image ready to be installed with the aforementioned or other ONIE-based operating systems.
The SN2700 switch is an ideal spine and top-of-rack (ToR) solution, allowing maximum flexibility, with port speeds spanning from 10Gb/s to 100Gb/s per port and port density that enables full rack connectivity to any server at any speed. The uplink ports allow a variety of blocking ratios that suit any application requirement.
Powered by the Spectrum ASIC and packed with 32 ports running at 100GbE, the SN2700 carries a whopping throughput of 6.4Tb/s with a landmark 9.52Bpps processing capacity in a compact 1RU form factor.
Keeping with the Mellanox tradition of setting performance record switch systems, the SN2700 introduces the world's lowest latency for a 100GbE switching and routing element, and does so while having the lowest power consumption in the market. With the SN2700, the use of 25, 40, 50 and 100GbE in large scale is enabled without changing power infrastructure facilities.
The SN2700 is part of Mellanox's complete end-to-end solution which provides 10GbE through 100GbE interconnectivity within the data center. Other devices in this solution include ConnectX®-4 based network interface cards, and LinkX™ copper or fiber cabling. This end-to-end solution is topped with Mellanox NEO™, a management application that relieves some of the major obstacles when deploying a network. NEO enables a fully certified and interoperable design, speeds up time to service and eventually speeds up RoI.
The SN2700 introduces superior hardware capabilities including dynamic flexible shared buffers and predictable wire speed performance with no packet loss for any packet size.
Product Type: Switch Chassis
Interfaces/Ports
Uplink Port: No
Modular: Yes
Stack Port: No
Port/Expansion Slot Details: 32 x 100 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology: 100 Gigabit Ethernet
Network Technology: 100GBase-X
I/O Expansions
Number of Total Expansion Slots: 32
Expansion Slot Type: QSFP28
Shared SFP Slot: No
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:
- Rail-mountable
- Rack-mountable
Height: 1.7"
Width: 16.8"
Depth: 27"
Weight (Approximate): 24.47 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
