Product Description

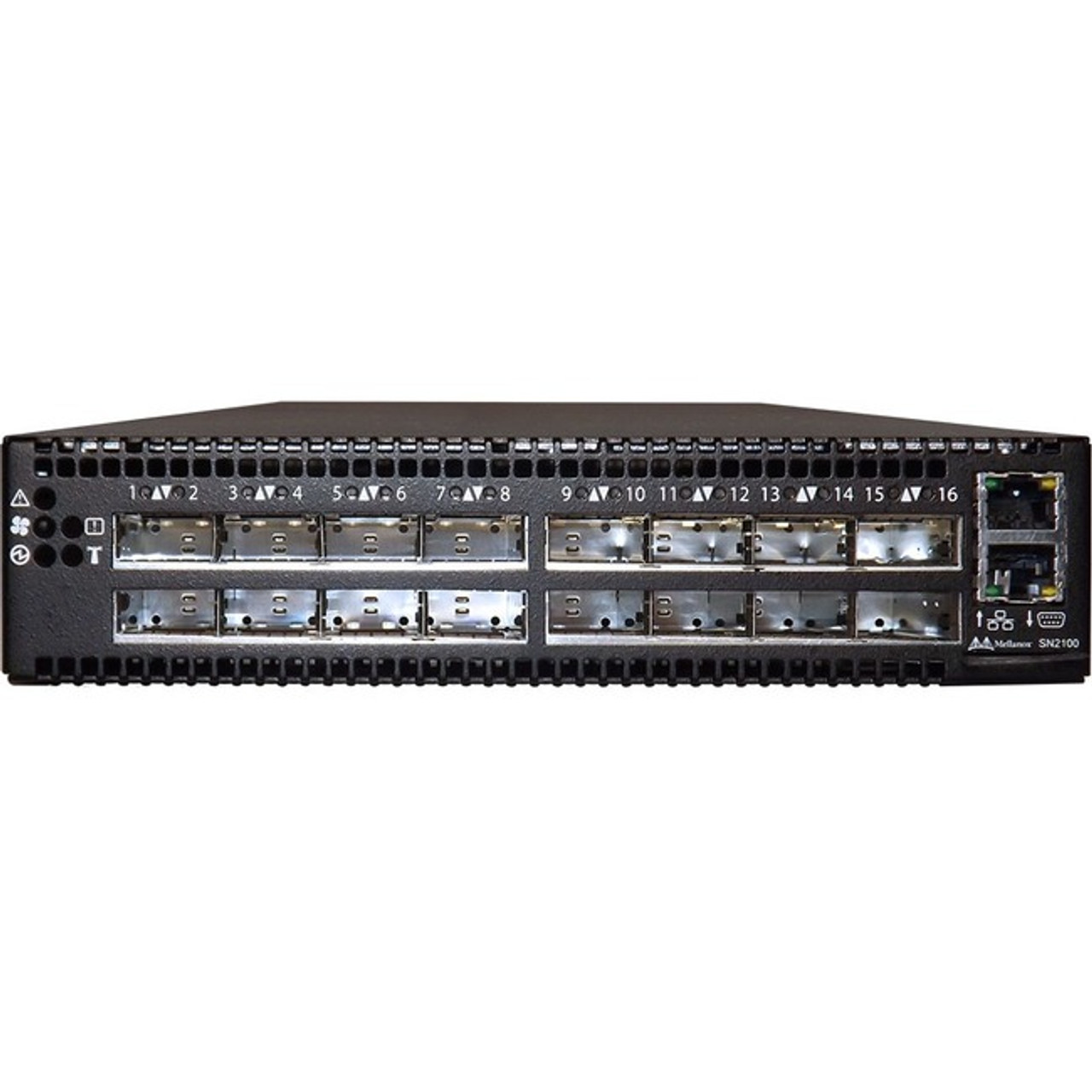

Mellanox Half-Width 16-Port Non-Blocking 100GbE Open Ethernet Switch System - MSN2100-CB2FC
Specifications
Manufacturer: Mellanox Technologies Ltd
Manufacturer Part Number: MSN2100-CB2FC
Manufacturer Website Address: http://www.mellanox.com
Brand Name: Mellanox
Product Line: Spectrum
Product Model: SN2100
Product Name: Half-Width 16-Port Non-Blocking 100GbE Open Ethernet Switch System
Marketing Information: Half-Width 16-port Non-blocking 100GbE Open Ethernet Switch System
The SN2100 switch provides a high density, side-by-side 100GbE switching solution which scales up to 64 25GbE ports in 1RU for the growing demands of today's database, storage, data centers environments.
The SN2100 switch is an ideal spine and top of rack (ToR) solution, allowing maximum flexibility, with port speeds spanning from 10Gb/s to 100 Gb/s per port and port density that enables full rack connectivity to any server at any speed. The uplink ports allow a variety of blocking ratios that suit any application requirement.
Powered by the Spectrum ASIC and packed with 16 ports running at 100GbE, the SN2100 carries a whopping switching capacity of 3.2Tb/s with a landmark 4.8Bpps processing capacity in a compact 1RU form factor.
Product Type: Ethernet Switch
Interfaces/Ports
Uplink Port: No
Modular: Yes
Stack Port: No
Port/Expansion Slot Details: 16 x 100 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology: 100 Gigabit Ethernet
Network Technology: 100GBase-X
I/O Expansions
Number of Total Expansion Slots: 16
Expansion Slot Type: QSFP+
Shared SFP Slot: No
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:
Height: 1.7"
Width: 7.9"
Depth: 20"
Weight (Approximate): 10.01 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Manufacturer: Mellanox Technologies Ltd
Manufacturer Part Number: MSN2100-CB2FC
Manufacturer Website Address: http://www.mellanox.com
Brand Name: Mellanox
Product Line: Spectrum
Product Model: SN2100
Product Name: Half-Width 16-Port Non-Blocking 100GbE Open Ethernet Switch System
Marketing Information: Half-Width 16-port Non-blocking 100GbE Open Ethernet Switch System
The SN2100 switch provides a high density, side-by-side 100GbE switching solution which scales up to 64 25GbE ports in 1RU for the growing demands of today's database, storage, data centers environments.
The SN2100 switch is an ideal spine and top of rack (ToR) solution, allowing maximum flexibility, with port speeds spanning from 10Gb/s to 100 Gb/s per port and port density that enables full rack connectivity to any server at any speed. The uplink ports allow a variety of blocking ratios that suit any application requirement.
Powered by the Spectrum ASIC and packed with 16 ports running at 100GbE, the SN2100 carries a whopping switching capacity of 3.2Tb/s with a landmark 4.8Bpps processing capacity in a compact 1RU form factor.
Product Type: Ethernet Switch
Interfaces/Ports
Uplink Port: No
Modular: Yes
Stack Port: No
Port/Expansion Slot Details: 16 x 100 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology: 100 Gigabit Ethernet
Network Technology: 100GBase-X
I/O Expansions
Number of Total Expansion Slots: 16
Expansion Slot Type: QSFP+
Shared SFP Slot: No
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:
- Rail-mountable
- Rack-mountable
Height: 1.7"
Width: 7.9"
Depth: 20"
Weight (Approximate): 10.01 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
