Product Description

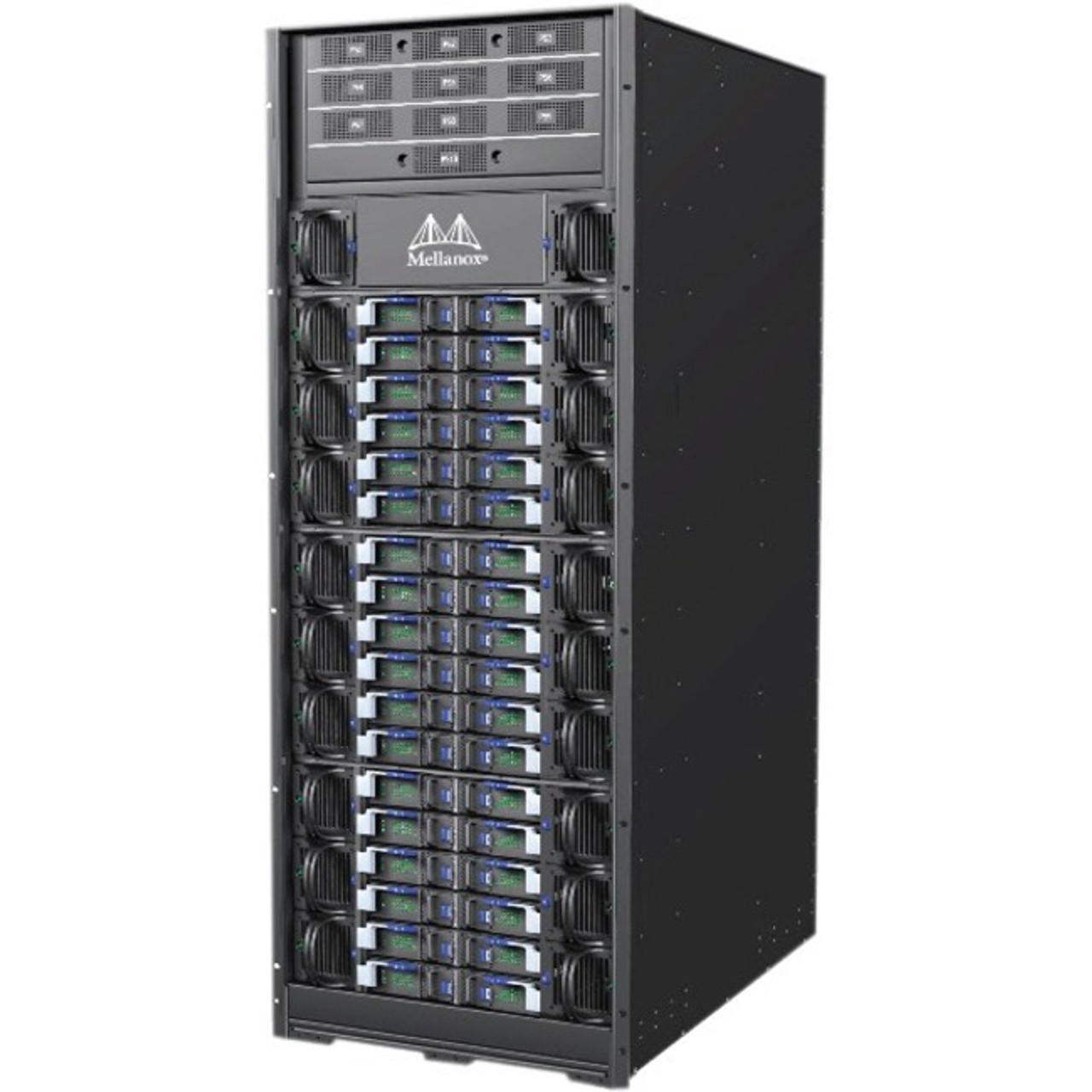

Mellanox CS7500 InfiniBand Switch - MSB7510-E2
Specifications
Manufacturer: Mellanox Technologies Ltd
Manufacturer Part Number: MSB7510-E2
Manufacturer Website Address: http://www.mellanox.com
Brand Name: Mellanox
Product Line: Switch-IB 2
Product Name: CS7500 InfiniBand Switch
Marketing Information: Mellanox provides the world's first smart switch, enabling in-network computing through the Co-Design SHARP™ technology. The CS7500 system provides the highest performing fabric solution in a 28U form factor by delivering 130Tb/s of full bi-directional bandwidth with 400ns port latency.
SCALING-OUT DATA CENTERS WITH EXTENDED DATA RATE (EDR) INFINIBAND
Faster servers based on PCIe 3.0, combined with high-performance storage and applications that use increasingly complex computations, are causing data bandwidth requirements to spiral upward. As servers are deployed with next generation processors, High-Performance Computing (HPC) environments and Enterprise Data Centers (EDC) will need every last bit of bandwidth delivered with Mellanox's next generation of EDR InfiniBand high-speed smart switches.
SUSTAINED NETWORK PERFORMANCE
Built with Mellanox's latest Switch-IB™ InfiniBand switch devices, the CS7500 provides up to 648 100Gb/s full bi-directional bandwidth per port. The CS7500 modular chassis switch provides an excellent priceperformance ratio for medium to extremely large size clusters, along with the reliability and manageability expected from a director-class switch.
The CS7500 is the world's first smart network switch, designed to enable in-network computing through the Co-Design Scalable Hierarchical Aggregation and Reduction Protocol (SHARP) technology. The Co-Design architecture enables the usage of all active data center devices to accelerate the communications frameworks, resulting in order of magnitude applications performance improvements.
Product Type: InfiniBand Switch
Interfaces/Ports
Number of Infiniband Ports: 36
Media & Performance
Data Transfer Rate: 100 Gbit/s
I/O Expansions
Expansion Slot Type: QSFP28
Management & Protocols
Manageable: Yes
Physical Characteristics
Compatible Rack Unit: 28U
Form Factor: Rack-mountable
Height: 49"
Width: 17.6"
Depth: 30.3"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Manufacturer: Mellanox Technologies Ltd
Manufacturer Part Number: MSB7510-E2
Manufacturer Website Address: http://www.mellanox.com
Brand Name: Mellanox
Product Line: Switch-IB 2
Product Name: CS7500 InfiniBand Switch
Marketing Information: Mellanox provides the world's first smart switch, enabling in-network computing through the Co-Design SHARP™ technology. The CS7500 system provides the highest performing fabric solution in a 28U form factor by delivering 130Tb/s of full bi-directional bandwidth with 400ns port latency.
SCALING-OUT DATA CENTERS WITH EXTENDED DATA RATE (EDR) INFINIBAND
Faster servers based on PCIe 3.0, combined with high-performance storage and applications that use increasingly complex computations, are causing data bandwidth requirements to spiral upward. As servers are deployed with next generation processors, High-Performance Computing (HPC) environments and Enterprise Data Centers (EDC) will need every last bit of bandwidth delivered with Mellanox's next generation of EDR InfiniBand high-speed smart switches.
SUSTAINED NETWORK PERFORMANCE
Built with Mellanox's latest Switch-IB™ InfiniBand switch devices, the CS7500 provides up to 648 100Gb/s full bi-directional bandwidth per port. The CS7500 modular chassis switch provides an excellent priceperformance ratio for medium to extremely large size clusters, along with the reliability and manageability expected from a director-class switch.
The CS7500 is the world's first smart network switch, designed to enable in-network computing through the Co-Design Scalable Hierarchical Aggregation and Reduction Protocol (SHARP) technology. The Co-Design architecture enables the usage of all active data center devices to accelerate the communications frameworks, resulting in order of magnitude applications performance improvements.
Product Type: InfiniBand Switch
Interfaces/Ports
Number of Infiniband Ports: 36
Media & Performance
Data Transfer Rate: 100 Gbit/s
I/O Expansions
Expansion Slot Type: QSFP28
Management & Protocols
Manageable: Yes
Physical Characteristics
Compatible Rack Unit: 28U
Form Factor: Rack-mountable
Height: 49"
Width: 17.6"
Depth: 30.3"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
