Product Description

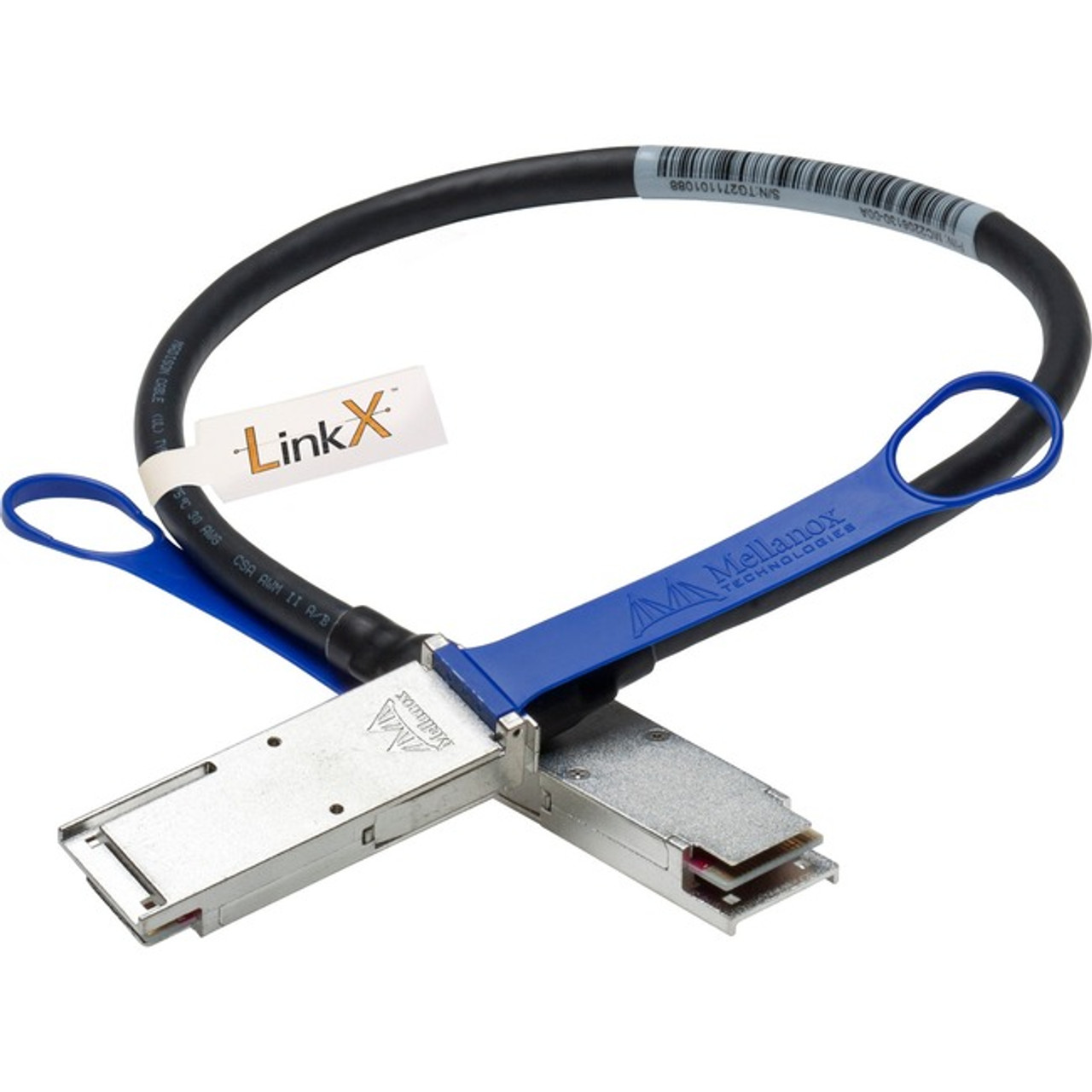

Mellanox Passive Copper Cable, VPI, up to 56Gb/s, QSFP, LSZH, 3m - MCP170L-F003
Specifications
Manufacturer: Mellanox Technologies Ltd
Manufacturer Part Number: MCP170L-F003
Manufacturer Website Address: http://www.mellanox.com
Brand Name: Mellanox
Product Line: LinkX
Product Name: Passive Copper Cable, VPI, up to 56Gb/s, QSFP, LSZH, 3m
Marketing Information: Mellanox's LinkX 40Gb/s and 56Gb/s passive copper cables provide robust connections and require no power from the connector. These passive copper cables are compliant with the InfiniBand Architecture, SFF-8436 specifications and provide connectivity between devices using QSFP ports. They fill the need for short, cost-effective connectivity in the data center. Mellanox's high-quality passive copper cable solutions provide a power-efficient replacement for active power connectivity such as fiber optic cables.
Optimizing systems to operate with Mellanox's passive copper cables significantly reduces power consumption and EMI emission, eliminating the use of EDC hosts.
Product Type: Network Cable
Technical Information
Cable Type: QSFP
Cable Length: 9.84 ft
Connector on First End: 1 x SFF-8436 QSFP
Connector on Second End: 1 x SFF-8436 QSFP
Features: Passive
Device Supported: Network Device
American Wire Gauge: 28 AWG
Data Transfer Rate: 56 Gbit/s
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Manufacturer: Mellanox Technologies Ltd
Manufacturer Part Number: MCP170L-F003
Manufacturer Website Address: http://www.mellanox.com
Brand Name: Mellanox
Product Line: LinkX
Product Name: Passive Copper Cable, VPI, up to 56Gb/s, QSFP, LSZH, 3m
Marketing Information: Mellanox's LinkX 40Gb/s and 56Gb/s passive copper cables provide robust connections and require no power from the connector. These passive copper cables are compliant with the InfiniBand Architecture, SFF-8436 specifications and provide connectivity between devices using QSFP ports. They fill the need for short, cost-effective connectivity in the data center. Mellanox's high-quality passive copper cable solutions provide a power-efficient replacement for active power connectivity such as fiber optic cables.
Optimizing systems to operate with Mellanox's passive copper cables significantly reduces power consumption and EMI emission, eliminating the use of EDC hosts.
Product Type: Network Cable
Technical Information
Cable Type: QSFP
Cable Length: 9.84 ft
Connector on First End: 1 x SFF-8436 QSFP
Connector on Second End: 1 x SFF-8436 QSFP
Features: Passive
Device Supported: Network Device
American Wire Gauge: 28 AWG
Data Transfer Rate: 56 Gbit/s
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
