Product Description

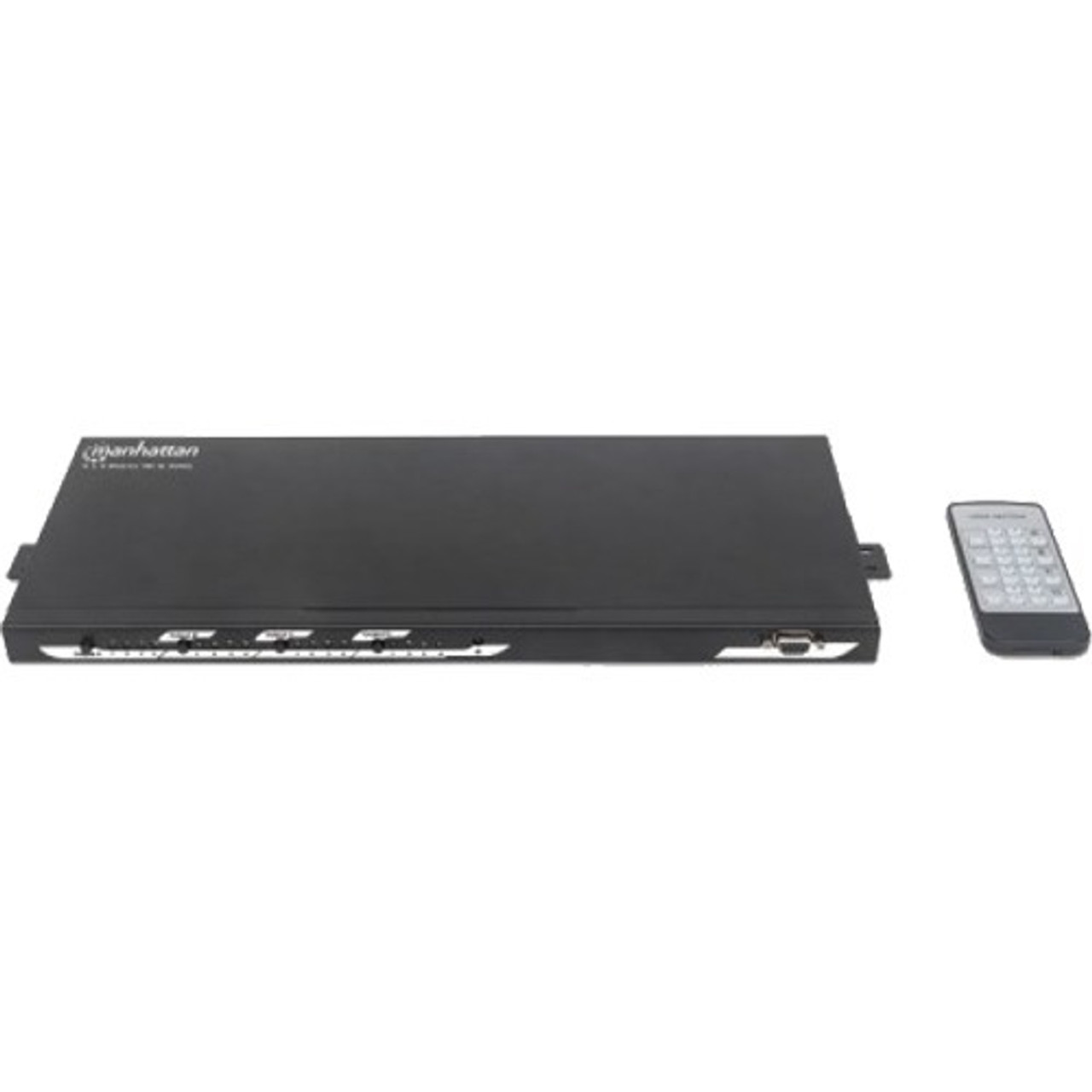

Manhattan 4K 4x4 HDMI Matrix - 207751
Specifications
Manufacturer: Manhattan
Manufacturer Part Number: 207751
Manufacturer Website Address: http://www.manhattan-products.com
Brand Name: Manhattan
Product Model: 207751
Product Name: 4K 4x4 HDMI Matrix
Marketing Information: Easily connect four HDMI sources to four displays.
The Manhattan 4K 4x4 HDMI Matrix gives you the option of connecting as many as four HDMI video sources - including gaming consoles, Blu-ray players, satellite receivers, digital recorders, set-top boxes and other devices - to up to four ultra-high-definition (4K, UHD) or 3D high-definition displays as well as Deep Color HD projectors.
Flexible Solution for Many HD Applications
Perfect for a variety of home or commercial applications, the Manhattan 4K 4x4 HDMI Matrix has manual selection switches, a convenient IR remote control and RS232/Serial port for PC control, so you can quickly select or switch between HDMI sources and displays.
Best Possible Image Quality
The Manhattan 4K 4x4 HDMI Matrix is HDMI and HDCP 1.4a compliant. It delivers a stunningly clean, crisp and vivid picture at up to 4K@30Hz resolution on one, two, three or four displays thanks to an integrated video bandwidth amplifier. Additionally, it supports HD-quality 3D video, as well as LPCM, DTS and Dolby TrueHD audio.
Product Type: Audio/Video Switchbox
Technical Information
Connectivity Technology: Cable
Number of Input Devices Supported: 4
Device Supported:
Number of Displays Supported: 4
Video
Graphics Modes: 4K
Maximum Video Resolution: 3840 × 2160
Interfaces/Ports
HDMI In: Yes
HDMI Out: Yes
Number of HDMI Inputs: 4
Number of HDMI Outputs: 4
Media & Performance
Maximum Operating Distance: 49.21 ft
Physical Characteristics
Form Factor: Rack-mountable
Height: 0.9"
Width: 16"
Depth: 6.7"
Weight (Approximate): 3.53 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS 2
Manufacturer: Manhattan
Manufacturer Part Number: 207751
Manufacturer Website Address: http://www.manhattan-products.com
Brand Name: Manhattan
Product Model: 207751
Product Name: 4K 4x4 HDMI Matrix
Marketing Information: Easily connect four HDMI sources to four displays.
The Manhattan 4K 4x4 HDMI Matrix gives you the option of connecting as many as four HDMI video sources - including gaming consoles, Blu-ray players, satellite receivers, digital recorders, set-top boxes and other devices - to up to four ultra-high-definition (4K, UHD) or 3D high-definition displays as well as Deep Color HD projectors.
Flexible Solution for Many HD Applications
Perfect for a variety of home or commercial applications, the Manhattan 4K 4x4 HDMI Matrix has manual selection switches, a convenient IR remote control and RS232/Serial port for PC control, so you can quickly select or switch between HDMI sources and displays.
Best Possible Image Quality
The Manhattan 4K 4x4 HDMI Matrix is HDMI and HDCP 1.4a compliant. It delivers a stunningly clean, crisp and vivid picture at up to 4K@30Hz resolution on one, two, three or four displays thanks to an integrated video bandwidth amplifier. Additionally, it supports HD-quality 3D video, as well as LPCM, DTS and Dolby TrueHD audio.
Product Type: Audio/Video Switchbox
Technical Information
Connectivity Technology: Cable
Number of Input Devices Supported: 4
Device Supported:
- Display
- Blu-ray Disc Player
- Set-top Box
- Satellite Receiver
- Gaming Console
Number of Displays Supported: 4
Video
Graphics Modes: 4K
Maximum Video Resolution: 3840 × 2160
Interfaces/Ports
HDMI In: Yes
HDMI Out: Yes
Number of HDMI Inputs: 4
Number of HDMI Outputs: 4
Media & Performance
Maximum Operating Distance: 49.21 ft
Physical Characteristics
Form Factor: Rack-mountable
Height: 0.9"
Width: 16"
Depth: 6.7"
Weight (Approximate): 3.53 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS 2
