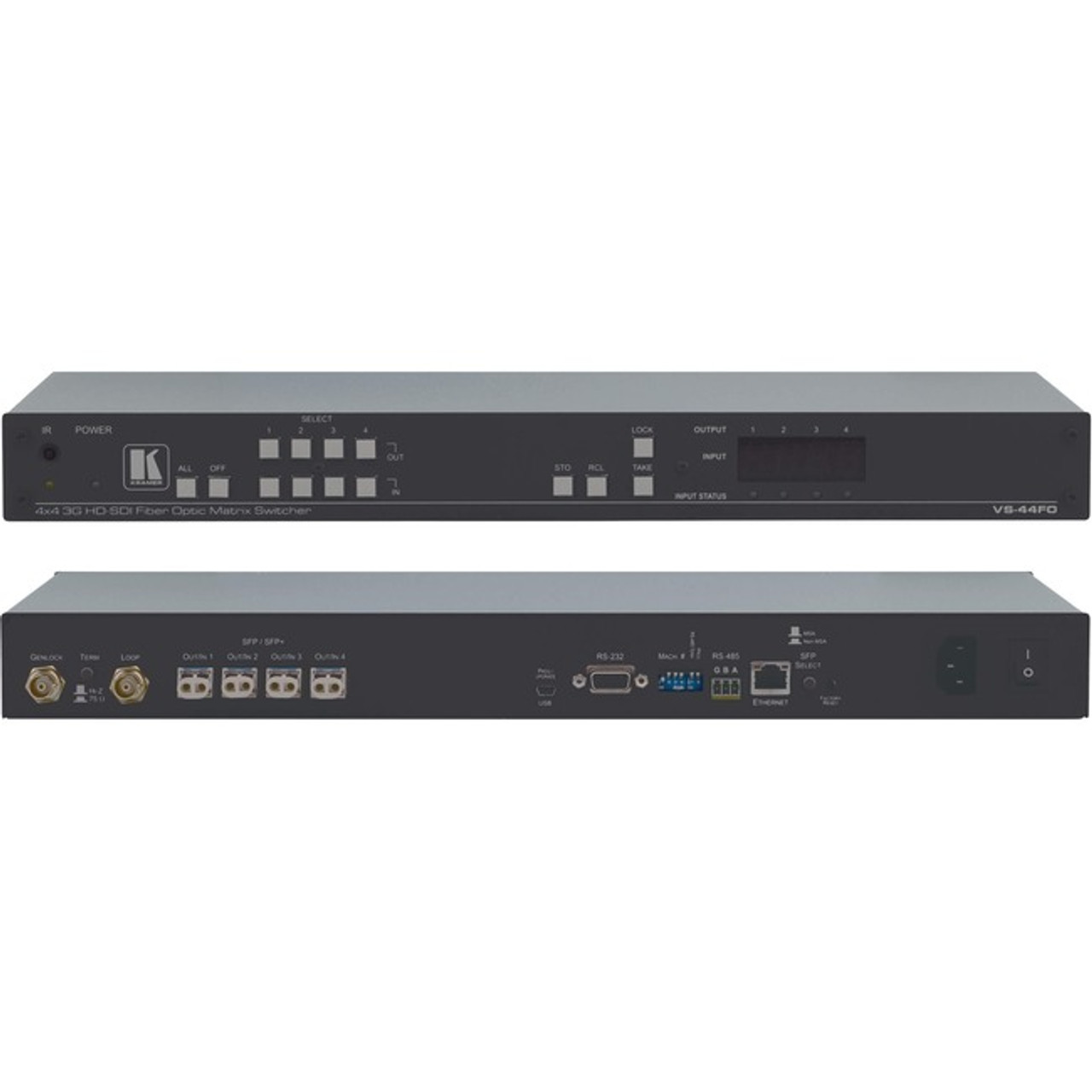

Kramer 1x1 to 4x4 3G HD-SDI over Fiber Optic Matrix Switcher - VS-44FO

Specifications
Manufacturer: Kramer Electronics LTD
Manufacturer Part Number: VS-44FO
Manufacturer Website Address: http://www.kramerelectronics.com
Brand Name: Kramer
Product Model: VS-44FO
Product Name: 1x1 to 4x4 3G HD-SDI over Fiber Optic Matrix Switcher
Marketing Information:

The VS-44FO is a matrix switcher for 3G HD-SDI video signals over fiber optical cable. The unit can switch any or all inputs to any or all outputs.

• Max. Data Rate - 3Gbps.
• HDTV Compatible.
• Optional SFP Modules - Maximum of 4 can be installed. Minimum of 1 is required.
• Genlock Looping Input.
• Selectable Sync Signal Termination.
• Automatic Reclocking and Equalization.
• Active Input™ Reporting - Each input button on the front panel automatically lights up when the unit detects a video signal on that input. Red indicates a standard definition (SDI) input signal and blue indicates a high definition (HD-SDI) input signal.
• Multiple Memory Locations - Stores multiple switches as presets (salvos) to be recalled and executed when needed.
• Take Button - Executes multiple switches all at once.
• Vertical Interval Switching - Compliant with SMPTE RP-168.
• Range - 2-40km depending on SFP modules installed.
• Built-in Black Burst Generator.
• Compatible Transmitter & Receiver - 690T & 690R.
• Flexible Control Options - Front panel, RS-232 (with K-Router™ Windows®-based software), RS-485, Ethernet and IR remote (included).
• Worldwide Power Supply - 100-240V AC.
• Standard 19" Rack Mount Size - 1U. Rack "ears" included.

Product Type: Audio/Video Switchbox
Technical Information
Connectivity Technology: Cable
Number of Input Devices Supported: 4
Device Supported: Display
Number of Displays Supported: 4
Interfaces/Ports
Connectivity (RJ-45): Yes
Number of Connectivity (RJ-45) Ports: 1
Media & Performance
Media Type Supported: Optical Fiber
Physical Characteristics
Form Factor: Rack-mountable
Height: 1.8"
Width: 19"
Depth: 7.2"
Weight (Approximate): 3.75 lb
