Product Description

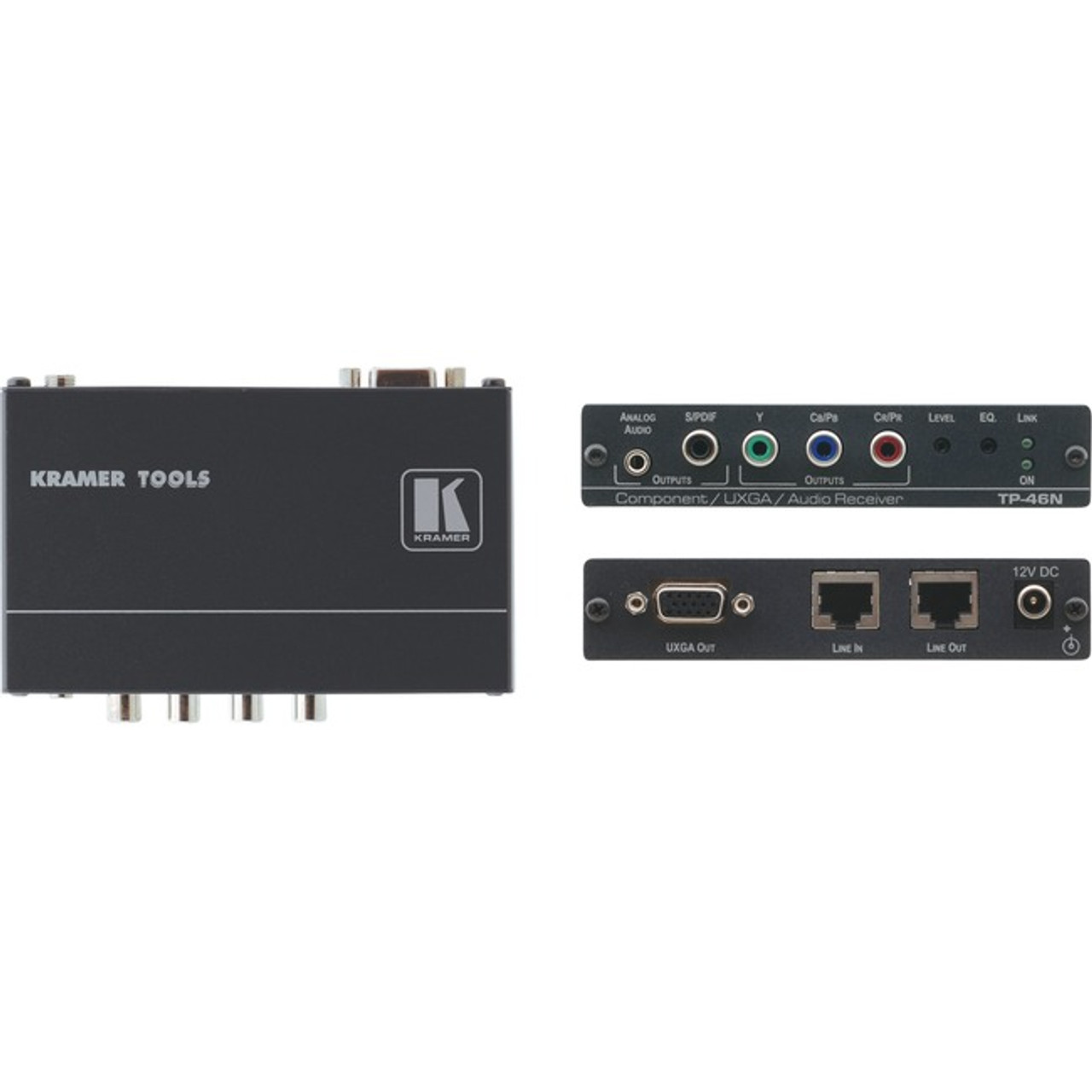

Kramer Component Video or Computer Graphics with Audio over Twisted Pair Receiver - TP-46N
Specifications
Manufacturer: Kramer Electronics LTD
Manufacturer Part Number: TP-46N
Manufacturer Website Address: http://www.kramerelectronics.com
Brand Name: Kramer
Product Model: TP?46N
Product Name: Component Video or Computer Graphics Video with Audio over Twisted Pair Receiver
Marketing Information:
Product Type: Video Extender Receiver
Technical Information
Connectivity Technology: Wired
Number of Output Devices Supported: 1
Maximum Operating Distance: 330 ft
Video
Graphics Modes: WUXGA
Maximum Video Resolution: 1920 x 1200
Interfaces/Ports
Network (RJ-45): Yes
VGA Out: Yes
Number of Network (RJ-45) Ports: 2
Number of VGA Outputs: 1
Media & Performance
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5
Physical Characteristics
Receiver Height: 1.09"
Receiver Width: 4.72"
Receiver Depth: 2.81"
Form Factor: Rack-mountable
Receiver Weight (Approximate): 10.58 oz
Manufacturer: Kramer Electronics LTD
Manufacturer Part Number: TP-46N
Manufacturer Website Address: http://www.kramerelectronics.com
Brand Name: Kramer
Product Model: TP?46N
Product Name: Component Video or Computer Graphics Video with Audio over Twisted Pair Receiver
Marketing Information:
The TP-46N is a twisted pair receiver for component video (YUV) or computer graphics video and unbalanced stereo audio or S/PDIF audio signals. The TP-45 transmitter converts an audio and video signal to a twisted pair signal and the TP-46N converts the twisted pair signal back into audio and video signals.
Product Type: Video Extender Receiver
Technical Information
Connectivity Technology: Wired
Number of Output Devices Supported: 1
Maximum Operating Distance: 330 ft
Video
Graphics Modes: WUXGA
Maximum Video Resolution: 1920 x 1200
Interfaces/Ports
Network (RJ-45): Yes
VGA Out: Yes
Number of Network (RJ-45) Ports: 2
Number of VGA Outputs: 1
Media & Performance
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5
Physical Characteristics
Receiver Height: 1.09"
Receiver Width: 4.72"
Receiver Depth: 2.81"
Form Factor: Rack-mountable
Receiver Weight (Approximate): 10.58 oz
