Product Description

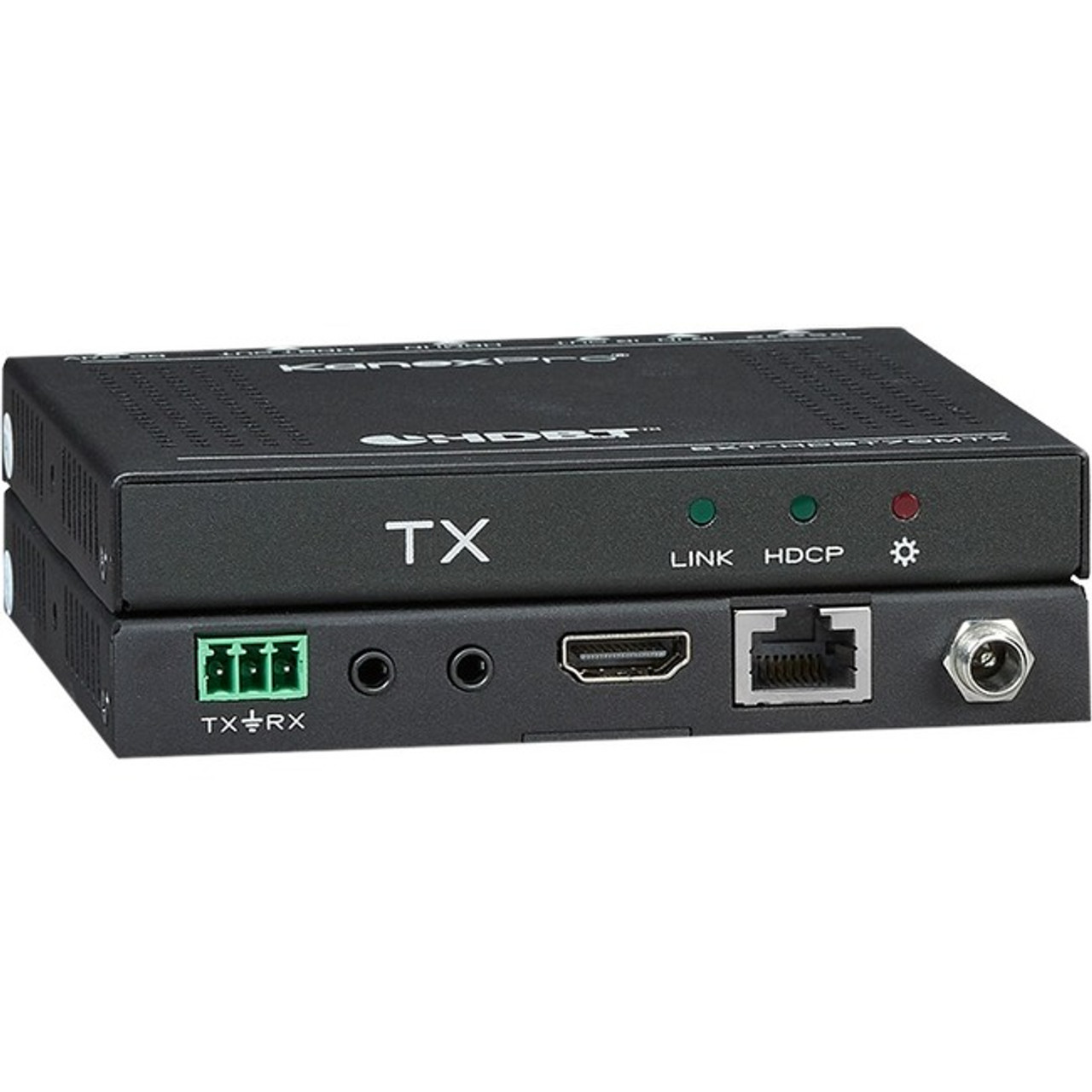

KanexPro UltraSlim 4K/30 HDMI Transmitter over HDBaseT- 230ft. (70m) - EXT-HDBT70MTX
Manufacturer: KanexPro
Manufacturer Part Number: EXT-HDBT70MTX
Manufacturer Website Address: http://www.kanexpro.com
Brand Name: KanexPro
Product Name: UltraSlim 4K/30 HDMI Transmitter over HDBaseT- 230ft. (70m)
Marketing Information:
The KanexPro EXT-HDBT70MTX is an HDCP 2.2 compliant transmitter - extender consisting of one HDMI input one Ethernet output and IR + RS-232 controls. It uses HDBaseT technology to transmit uncompressed, high-resolution 1080p/ 4K signals from transmitter to the receiver via a CAT5e/CAT6a cable at up to 70/40m. Moreover, EXT-HDBT70M supports CEC, bi- directional RS232 & IR control, and bi-directional PoH (power over HDBaseT) function.
Applications
Ideal for use in digital signage applications, healthcare AV, control rooms, educational facilities, airports, commanding centers and home theater.
Please note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.
Product Type: Video Extender Transmitter
Technical Information
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Maximum Operating Distance: 229.66 ft
Video
Graphics Modes: 4K
Maximum Video Resolution: 4096 x 2160
Interfaces/Ports
Network (RJ-45): Yes
HDMI In: Yes
Number of Network (RJ-45) Ports: 1
Number of HDMI Inputs: 1
Media & Performance
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Physical Characteristics
Transmitter Height: 0.64"
Transmitter Width: 4.53"
Transmitter Depth: 4.29"
Form Factor: Rack-mountable
Transmitter Weight (Approximate): 6.81 oz
Product Videos
Custom Field
Product Reviews
