Product Description

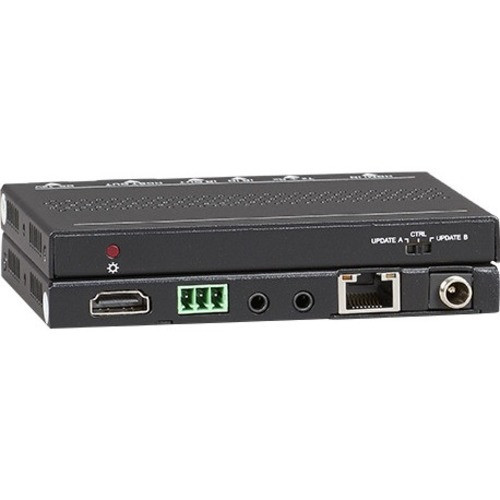

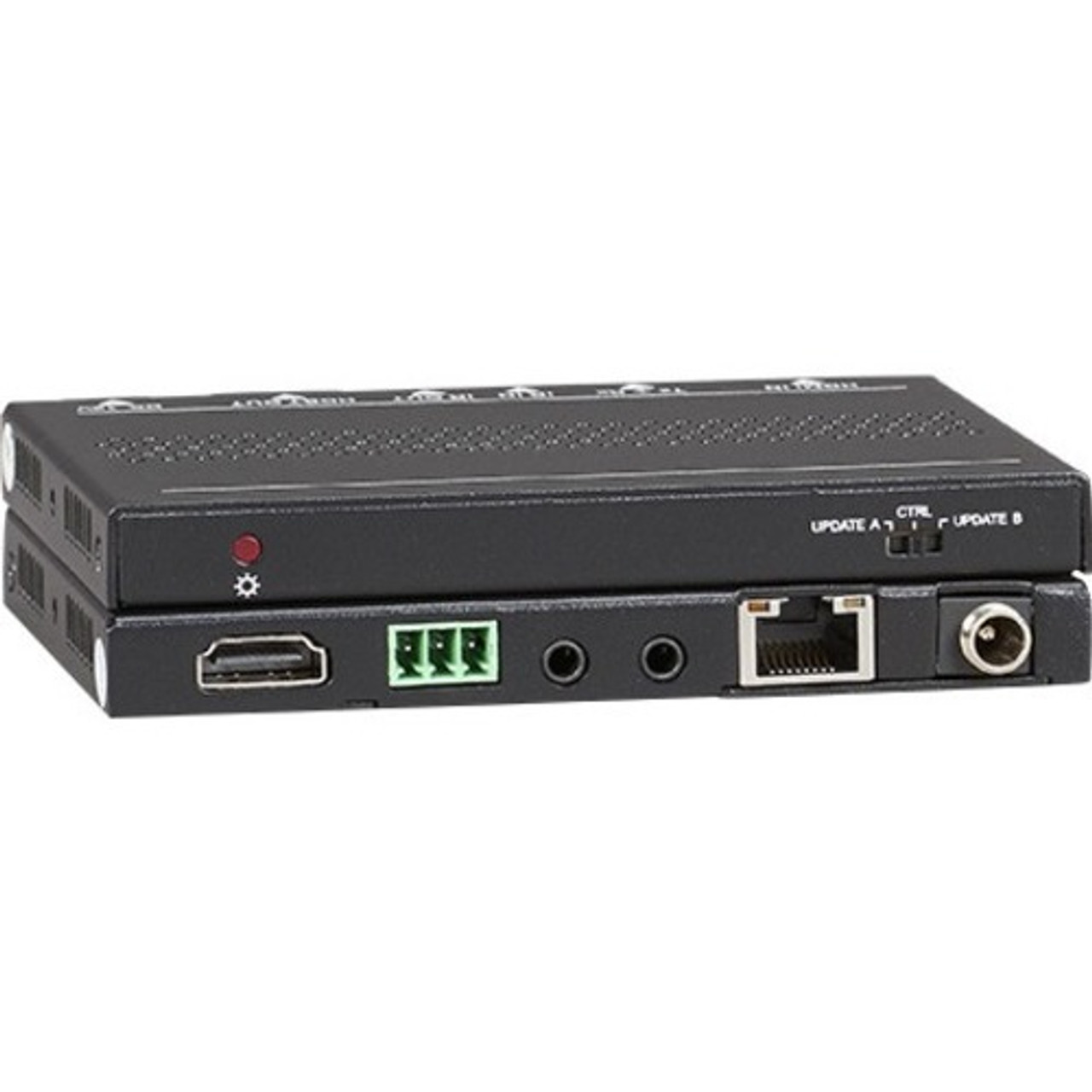

KanexPro UltraSlim 4K/60 HDMI 2.0 Extender over HDBaseT up to 230ft & PoH - EXT-70SL18G
Manufacturer: KanexPro
Manufacturer Part Number: EXT-70SL18G
Manufacturer Website Address: http://www.kanexpro.com
Brand Name: KanexPro
Product Name: UltraSlim 4K/60 HDMI 2.0 Extender over HDBaseT up to 230ft & PoH
Marketing Information:
The KanexPro EXT-70SL18G extender is an UltraSlim 4K /60Hz transmitter - receiver set designed to extend natural and uncompressed ultra HD 4K signals from your HDMI source device to a 4K display remotely located 230 feet away. It also supports PoH (power over HDBaseT) requiring you to power only from one side, either the sender or receiver. For dynamic range and wide color range (gamut) HDR and 4:4:4 Chroma color sampling are one of the key features of these extenders.
Compliant with HDCP 2.2, this extender set supports EDID and CEC pass-through to enable HDMI-CEC enabled devices to communicate and operate smoothly. For control, it provisions bi-directional IR and RS-232 pass-thru to send control commands to 4K displays for turning on/ off and other functions.
Applications
Ideal for use in digital signage applications, healthcare AV, control rooms, educational facilities, airports, commanding centers and smart homes.
Please note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.
Product Type: Video Extender Transmitter/Receiver
Technical Information
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 230 ft
Video
Graphics Modes: 4K
Maximum Video Resolution: 4096 x 2160
Interfaces/Ports
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media & Performance
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6a
Physical Characteristics
Transmitter Height: 0.47"
Transmitter Width: 4.50"
Transmitter Depth: 3.30"
Transmitter Weight (Approximate): 1.05 lb
