Product Description

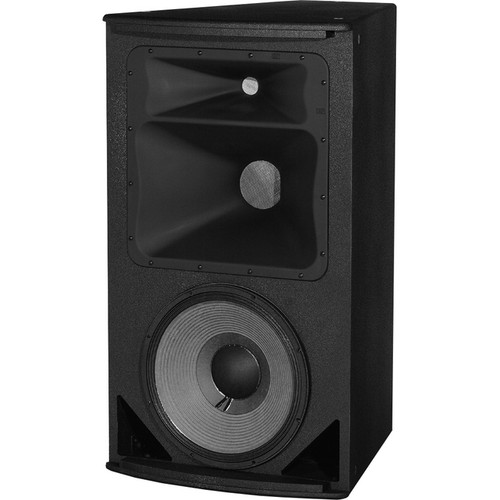

JBL AM7315/95 3-way Speaker - 1000 W RMS - Black - AM731595
Manufacturer: Harman International Industries, Inc
Manufacturer Part Number: AM731595
Manufacturer Website Address: http://www.harman.com
Brand Name: JBL
Product Model: AM7315/95
Product Name: High Power 3-Way Loudspeaker
Marketing Information:
AM7315/95 is a high power 3-way full-range loudspeaker system comprised of one 380 mm (15 in) Differential Drive® low frequency driver, one 200 mm (8 in) CMCD Cone Midrange Compression Driver, and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled 90° by 50° coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Preengineered array bracketry is available. AM7315/95 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
Product Type: Speaker
Technical Information
Crossover Type: 3-way
RMS Output Power: 1000 W
PMPO Output Power: 4000 W
Driver Type:
- 15"
- 8" Midrange
- 1.50"
Minimum Frequency Response: 45 Hz
Maximum Frequency Response: 18 kHz
Impedance: 8 Ohm
Sensitivity: 113 dB
Physical Characteristics
Color: Black
Height: 38.1"
Width: 22.1"
Depth: 25.9"
Weight (Approximate): 101 lb
