Product Description

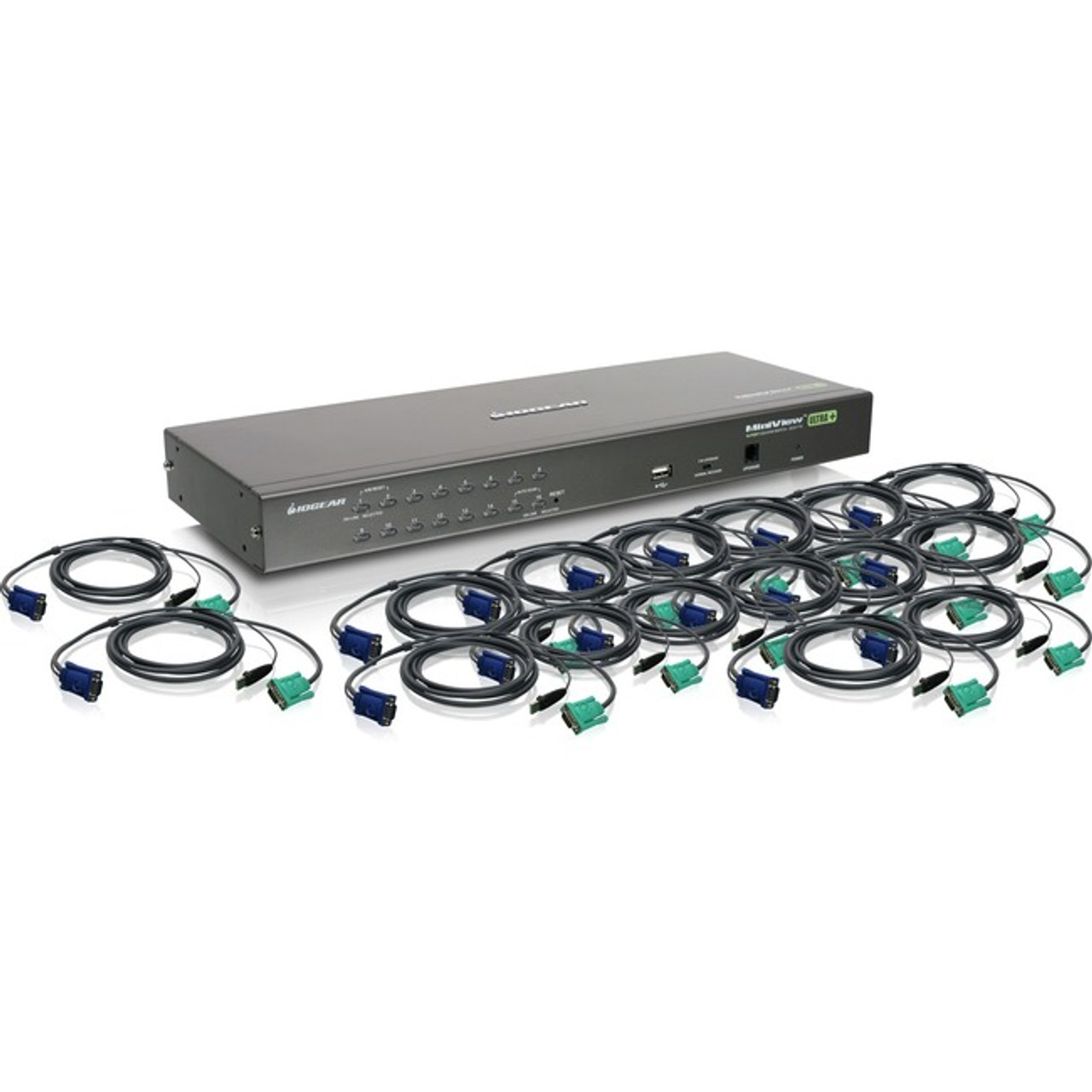

IOGEAR GCS1716KITU KVM Switch - GCS1716KITU
Specifications
Manufacturer: IOGEAR, Inc
Manufacturer Part Number: GCS1716KITU
Manufacturer Website Address: http://www.iogear.com
Brand Name: IOGEAR
Product Model: GCS1716KITU
Product Name: GCS1716KITU KVM Switch
Marketing Information:
Product Type: KVM Switchbox
Technical Information
Number of Computers Supported: 16
Video
Maximum Video Resolution: 2048 x 1536
Interfaces/Ports
USB: Yes
Number of USB Ports: 1
Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.8"
Width: 17"
Depth: 6.3"
Weight (Approximate): 6.02 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
Manufacturer: IOGEAR, Inc
Manufacturer Part Number: GCS1716KITU
Manufacturer Website Address: http://www.iogear.com
Brand Name: IOGEAR
Product Model: GCS1716KITU
Product Name: GCS1716KITU KVM Switch
Marketing Information:
The GCS1716KITU KVM is a combo switch with USB KVM cables included; allowing access and control of up to 16 directly connected computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1716 features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.
Product Type: KVM Switchbox
Technical Information
Number of Computers Supported: 16
Video
Maximum Video Resolution: 2048 x 1536
Interfaces/Ports
USB: Yes
Number of USB Ports: 1
Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.8"
Width: 17"
Depth: 6.3"
Weight (Approximate): 6.02 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
- RoHS
- WEEE
