Product Description

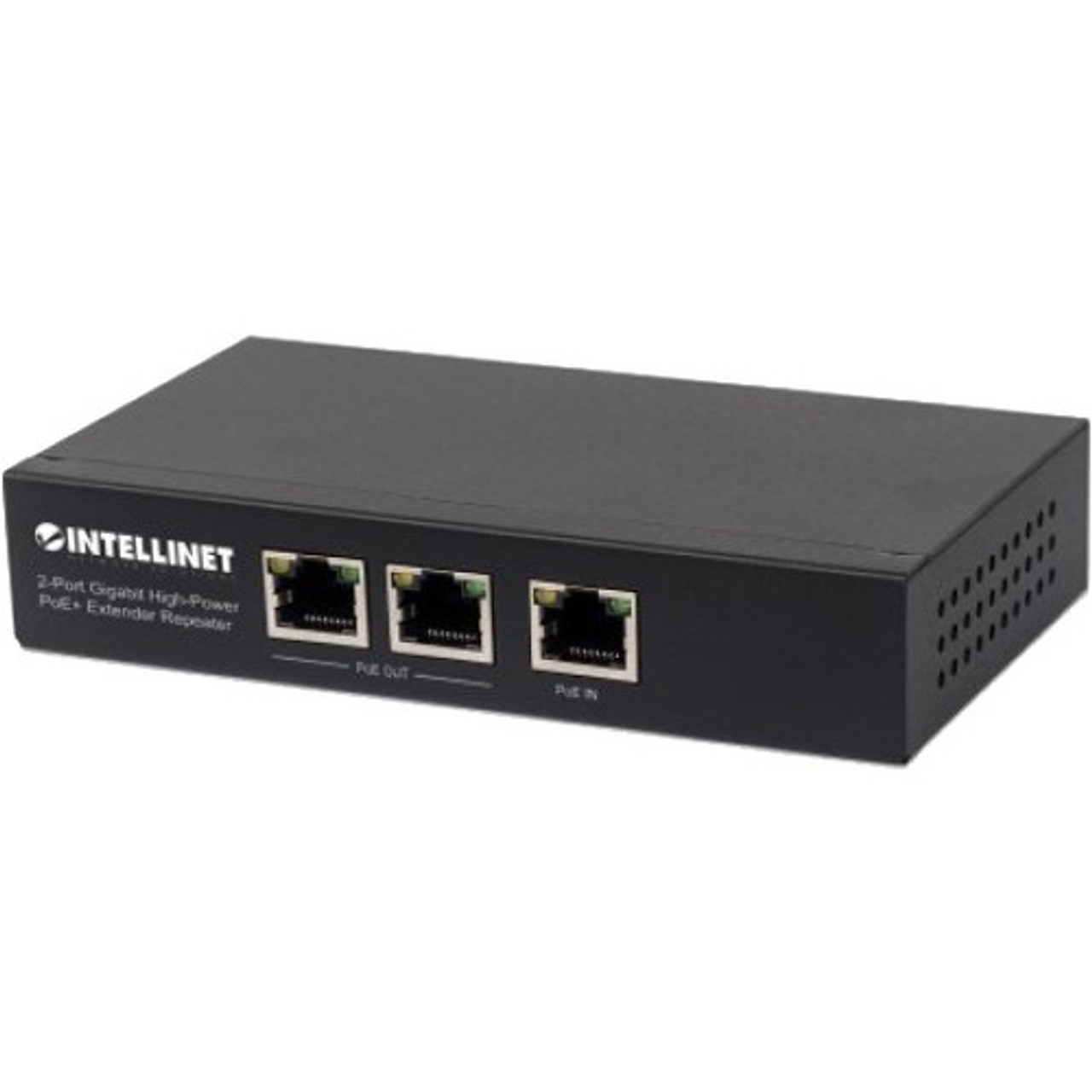

Intellinet Network Solutions Indoor 2-Port Gigabit High-Power PoE+ Extender Repeater, Extends Range - 561266
Manufacturer: Intellinet Network Solutions
Manufacturer Part Number: 561266
Manufacturer Website Address: http://www.intellinet-network.com
Brand Name: Intellinet
Product Model: 561266
Product Name: 2-Port Gigabit High-Power PoE+ Extender Repeater
Marketing Information: Extend the range of a PoE connection.
The Intellinet 2-Port Gigabit High-Power PoE+ Extender Repeater extends connection distances from a PoE source to two output devices up to 100 m (328 ft.) via Cat5e or Cat6 cable. The PoE+ extender does not need any additional power supply, as it draws the power it needs from the PoE input.
Reduce Wiring Costs
Avoid the expense of running AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Extender to the LAN switch port and use the existing Cat5e/6/6a cabling to deliver DC power as well as transfer data.
Power over Ethernet 802.3at Compliant
The Intellinet 2-Port Gigabit High-Power PoE+ Extender Repeater supports the IEEE 802.3at protocol. The repeater forwards data at Gigabit speeds and offers up to 30 watts of input power to a connected IEEE 802.3af- or IEEE 802.3at-compliant device. The cable length on both ends can be up to 100 meters (328 ft.), bringing the total distance between PoE source and device to 200 m (656 ft.).
Simple Installation
Simply connect the ""PoE In"" port with your PoE injector or PoE switch, and connect the ""PoE Out"" ports with the PoE devices that you wish to connect (e.g., a VoIP phone and a PoE network camera). That's it. This product was designed to be as easy as possible to set up and use.
Product Type: PoE+ Extender Repeater
Power Description
Input Voltage:
- 52 V DC
- 55 V DC
Maximum Output Power: 25 W
Interfaces/Ports
Input Ports: 1 10/100/1000Base-T
Output Ports: 2 10/100/1000Base-T
Physical Characteristics
Height: 1.1"
Width: 5.5"
Length: 3"
Weight (Approximate): 8.47 oz
Miscellaneous
Compatibility:
- IP Phone
- Network Camera
- Wireless Access Point
Certifications & Standards:
- CE
- FCC Class A
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3
- IEEE 802.3ab
- IEEE 802.3u
