Product Description

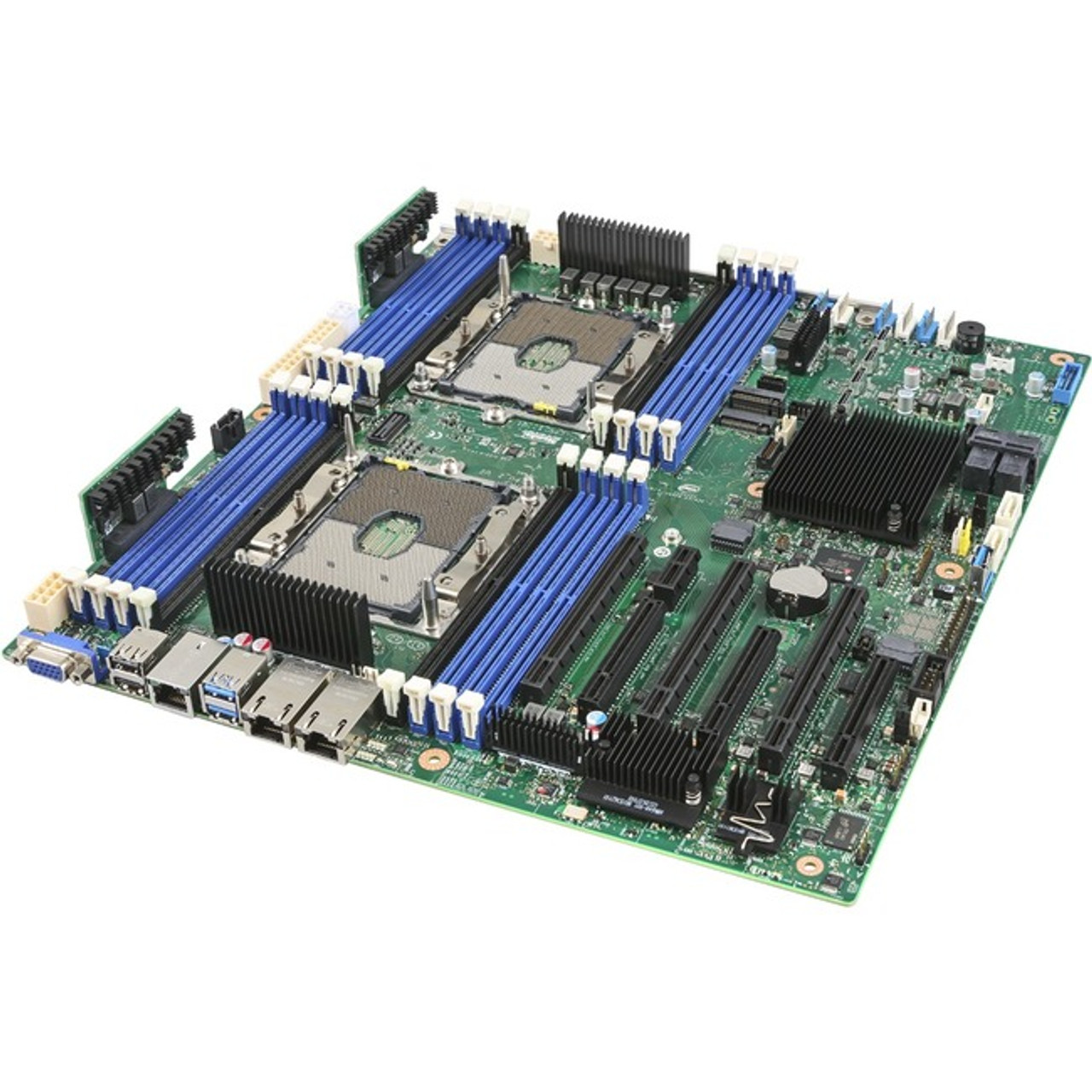

Intel S2600STQR Server Motherboard - Chipset - Socket P - S2600STQR
Specifications
Manufacturer: Intel Corporation
Manufacturer Part Number: S2600STQR
Manufacturer Website Address: http://www.intel.com
Brand Name: Intel
Product Model: S2600STQR
Product Name: Server Board S2600STQR
Marketing Information:
Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 2
Processor Socket: Socket P
Processor Supported: Xeon
Memory
Number of Memory Slots: 16
Memory Form Factor:
Maximum Memory: 2 TB
Memory Speed Supported:
Memory Technology: DDR4 SDRAM
Intel Optane Memory Ready: Yes
I/O Controller
Controller Type: Serial ATA
RAID Supported: Yes
RAID Levels:
Video
Onboard Video: CPU Dependent Video
Network & Communication
10Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 6
Total Number of PCI Express Slots: 6
Number of PCI Express x8 Slots: 3
Number of PCI Express x16 Slots: 3
Interfaces/Ports
Total Number of USB Ports: 7
VGA: Yes
Onboard Interfaces
Number of SATA Interfaces: 12
Number of NVMe Ports: 2
Physical Characteristics
Form Factor: SSI EEB
Width: 12"
Depth: 13"
Manufacturer: Intel Corporation
Manufacturer Part Number: S2600STQR
Manufacturer Website Address: http://www.intel.com
Brand Name: Intel
Product Model: S2600STQR
Product Name: Server Board S2600STQR
Marketing Information:
INTEL® SERVER BOARD S2600ST FAMILY
The Intel® Server Board S2600ST offers small and medium businesses a general-purpose, price-performance solution for networking scenarios involving storage, security and embedded appliances. Optimized for use with the 2nd Generation Intel® Xeon® processor Scalable family, the board features multiple PCIe lanes and a standard form factor for greater versatility in a variety of use cases including cloud, storage, and telecommunications. Together, this standard form factor and rich feature set helps an organizations' ability to move, store, and process data more quickly in a variety of environments.
Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 2
Processor Socket: Socket P
Processor Supported: Xeon
Memory
Number of Memory Slots: 16
Memory Form Factor:
- DIMM
- RDIMM
- LRDIMM
Maximum Memory: 2 TB
Memory Speed Supported:
- 2.13 GHz
- 2.40 GHz
- 2.67 GHz
- 2.93 GHz
Memory Technology: DDR4 SDRAM
Intel Optane Memory Ready: Yes
I/O Controller
Controller Type: Serial ATA
RAID Supported: Yes
RAID Levels:
- 0
- 1
- 10
Video
Onboard Video: CPU Dependent Video
Network & Communication
10Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 6
Total Number of PCI Express Slots: 6
Number of PCI Express x8 Slots: 3
Number of PCI Express x16 Slots: 3
Interfaces/Ports
Total Number of USB Ports: 7
VGA: Yes
Onboard Interfaces
Number of SATA Interfaces: 12
Number of NVMe Ports: 2
Physical Characteristics
Form Factor: SSI EEB
Width: 12"
Depth: 13"
