Product Description

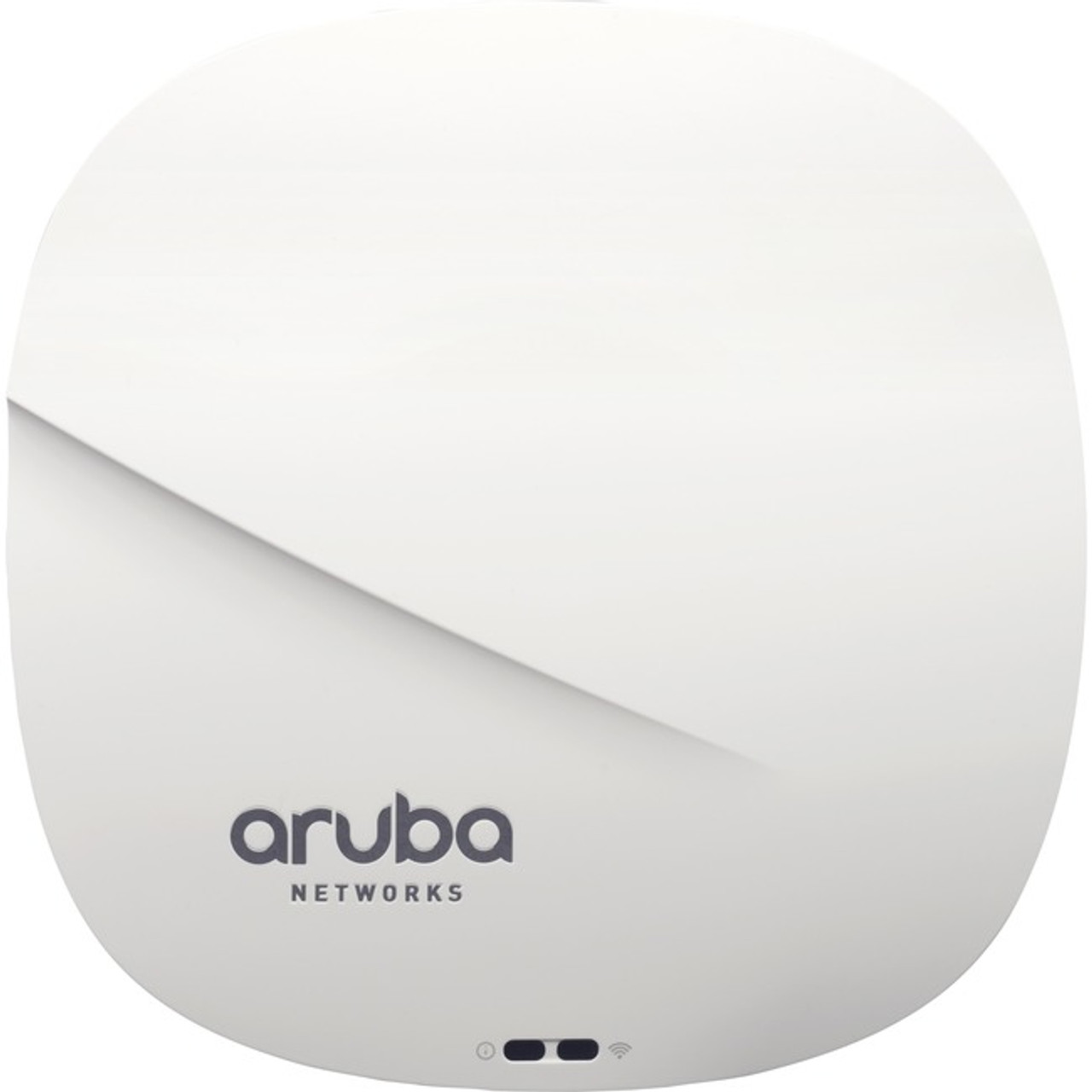

Aruba IAP-335 IEEE 802.11ac 2.30 Gbit/s Wireless Access Point - JW825ACM
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: JW825ACM
Manufacturer Website Address: http://www.hpe.com
Brand Name: Aruba
Product Series: 330
Product Model: IAP-335
Product Name: IAP-335 Wireless Access Point
Marketing Information:
The Aruba 330 Series access points provide the fastest gigabit data speeds and superb user experience for mobile devices and applications in a digital workplace. Designed with an integrated HPE Smart Rate port to scale up to 5Gbps Ethernet, the 330 Series allows enterprises to leverage their multi-gigabit Ethernet wired network infrastructures to eliminate bottlenecks.
Thanks to ClientMatch technology, ArubaOS enables the 330 series to automatically detect and classify 802.11ac Wave 2 capable mobile devices. This allows ClientMatch to automatically collect Wave 2 capable devices under a single Wave 2 radio so that performance benefits of multi-user MIMO can be realized - without the adverse effects of slower 802.11ac and traditional 802.11n capable mobile devices. This means increased network capacity and a boost in network efficiency.
With a maximum concurrent data rate of 1,733 Mbps in the 5 GHz band and 600 Mbps in the 2.4 GHz band (for an aggregate peak data rate of 2.3Gbps), the 330 Series Access Points deliver a best-in-class, next-generation 802.11ac Wi-Fi infrastructure that is ideal for lecture halls, auditoriums, public venues, and high-density office environments.
The high performance and high density 802.11ac 330 Series Access Points support 160 MHz channel bandwidth (VHT160), 4-stream multi-user MIMO (MU-MIMO) and 4 spatial streams (4SS).
They provide simultaneous data transmission to multiple devices, maximizing data throughput and improving network efficiency.
IOT PLATFORM CAPABILITIES
Like all Aruba Wi-Fi 6 APs, the 330 Series provides integrated Bluetooth capabilities to enable Meridian and IoT-based location services, asset tracking, and mobile engagement services. For expanded use cases, an IoT expansion radio can be added to support the Zigbee protocol. These features allow organizations to leverage the AP as an IoT platform, which eliminates the need for an overlay infrastructure and additional IT resources.
UNIQUE BENEFITS
- Dual Radio 802.11ac access point with Multi-User MIMO
- Supports up to 1,733 Mbps in the 5 GHz band (with 4SS/VHT80 or 2SS/VHT160 clients) and up to 600 Mbps in the 2.4 GHz band (with 4SS/HT40 clients)
- Antenna polarization diversity for optimized RF performance
- Each 5 GHz radio chain has a switch and two antennas
- Software controlled; Horizontally and vertically polarized
- HPE Smart Rate uplink port that scales up to 5Gbps
- Supports up to 5Gbps with NBase-T and 802.3bz Ethernet compatibility
- Backwards compatible with 100/1000Base-T
- Adds support for hitless PoE failover between the HPE Smart Rate port and the secondary 1000Base-T port when both ports are powered
- Built-in Bluetooth Low-Energy (BLE) radio
- Enables location based services with BLE-enabled mobile devices receiving signals from multiple Aruba Beacons at the same time
- Advanced Cellular Coexistence (ACC)
- Minimizes interference from 3G/4G cellular networks, distributed antenna systems and commercial small cell/femtocell equipment
- Quality of service for app visibility and control
- Supports priority handling and policy enforcement for unified communication apps, including Skype for Business with encrypted videoconferencing, voice, chat and desktop sharing
- Aruba AppRF technology leverages deep packet inspection to classify and block, prioritize, or limit bandwidth for thousands of applications in a range of categories
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11ac
Frequency Band:
- 2.40 GHz
- 5 GHz
Total Number of Antennas: 12
Number of Internal Antennas: 12
Wireless Transmission Speed: 2.30 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Interfaces/Ports
Ethernet Technology:
- 5 Gigabit Ethernet
- Gigabit Ethernet
Number of Network (RJ-45) Ports: 2
PoE PD Port: Yes
USB: Yes
Management Port: Yes
Physical Characteristics
Form Factor:
- T-bar Mount
- Ceiling Mountable
- Rail-mountable
Height: 2"
Width: 8.9"
Depth: 8.8"
Weight (Approximate): 2.54 lb
