Product Description

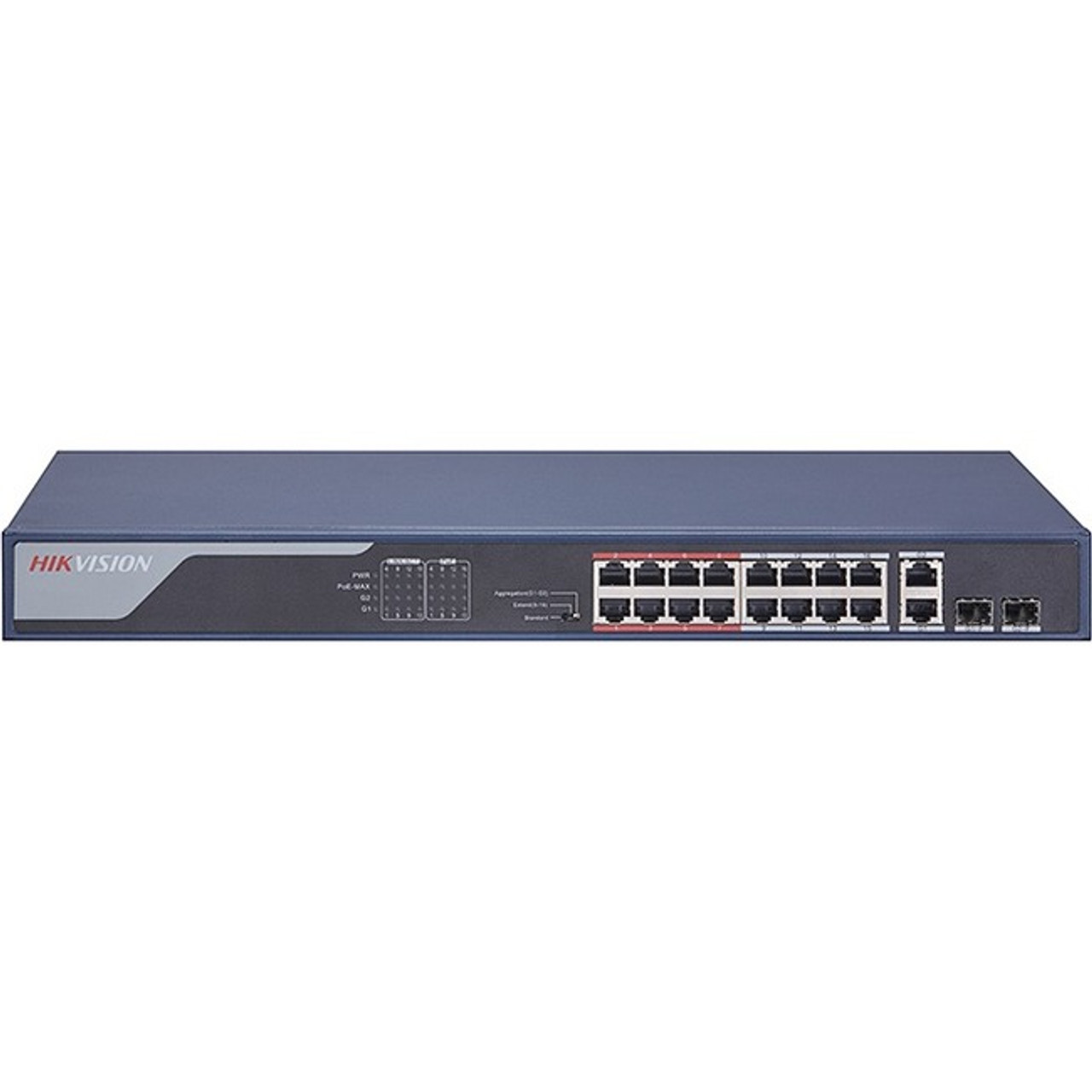

Hikvision Unmanaged Ethernet PoE Switch - DS-3E0318P-E2
Specifications
Manufacturer: Hikvision
Manufacturer Part Number: DS-3E0318P-E2
Manufacturer Website Address: http://www.hikvision.com
Brand Name: Hikvision
Product Series: DS-3E0xxxP-E2
Product Model: DS-3E0318P-E2
Product Name: Unmanaged Ethernet PoE Switch
Marketing Information: The DS-3E0xxxP-E2 is an unmanaged Ethernet PoE switch that requires no configuration and contains up to 24 100 Mbps ports. It is ideal for managing simple installations that have a large volume of video traffic from high-megapixel IP cameras. High priority ports guarantee stable transmission of key video feeds.
Switches in this series contain up to two 1000 Mbps combination ports, and are compliant with IEEE802.3, IEEE802.3u, and IEEE802.3x Ethernet standards. They support wire-speed forwarding, which extends the Ethernet PoE power supply up to a distance of 984 ft (300 m).
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 16
Modular: Yes
Port/Expansion Slot Details:
Media & Performance
Media Type Supported:
Ethernet Technology:
Network Technology:
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP (mini-GBIC)
Shared SFP Slot: Yes
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: No
Power Description
Power Source: Power Supply
Physical Characteristics
Height: 1.7"
Depth: 8.7"
Length: 17.3"
Weight (Approximate): 5.84 lb
Manufacturer: Hikvision
Manufacturer Part Number: DS-3E0318P-E2
Manufacturer Website Address: http://www.hikvision.com
Brand Name: Hikvision
Product Series: DS-3E0xxxP-E2
Product Model: DS-3E0318P-E2
Product Name: Unmanaged Ethernet PoE Switch
Marketing Information: The DS-3E0xxxP-E2 is an unmanaged Ethernet PoE switch that requires no configuration and contains up to 24 100 Mbps ports. It is ideal for managing simple installations that have a large volume of video traffic from high-megapixel IP cameras. High priority ports guarantee stable transmission of key video feeds.
Switches in this series contain up to two 1000 Mbps combination ports, and are compliant with IEEE802.3, IEEE802.3u, and IEEE802.3x Ethernet standards. They support wire-speed forwarding, which extends the Ethernet PoE power supply up to a distance of 984 ft (300 m).
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 16
Modular: Yes
Port/Expansion Slot Details:
- 16 x Fast Ethernet Network
- 2 x Gigabit Ethernet TP/SFP Combo
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology:
- Fast Ethernet
- Gigabit Ethernet
Network Technology:
- 10/100Base-T
- 10/100/1000Base-T
- 1000Base-X
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP (mini-GBIC)
Shared SFP Slot: Yes
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: No
Power Description
Power Source: Power Supply
Physical Characteristics
Height: 1.7"
Depth: 8.7"
Length: 17.3"
Weight (Approximate): 5.84 lb
