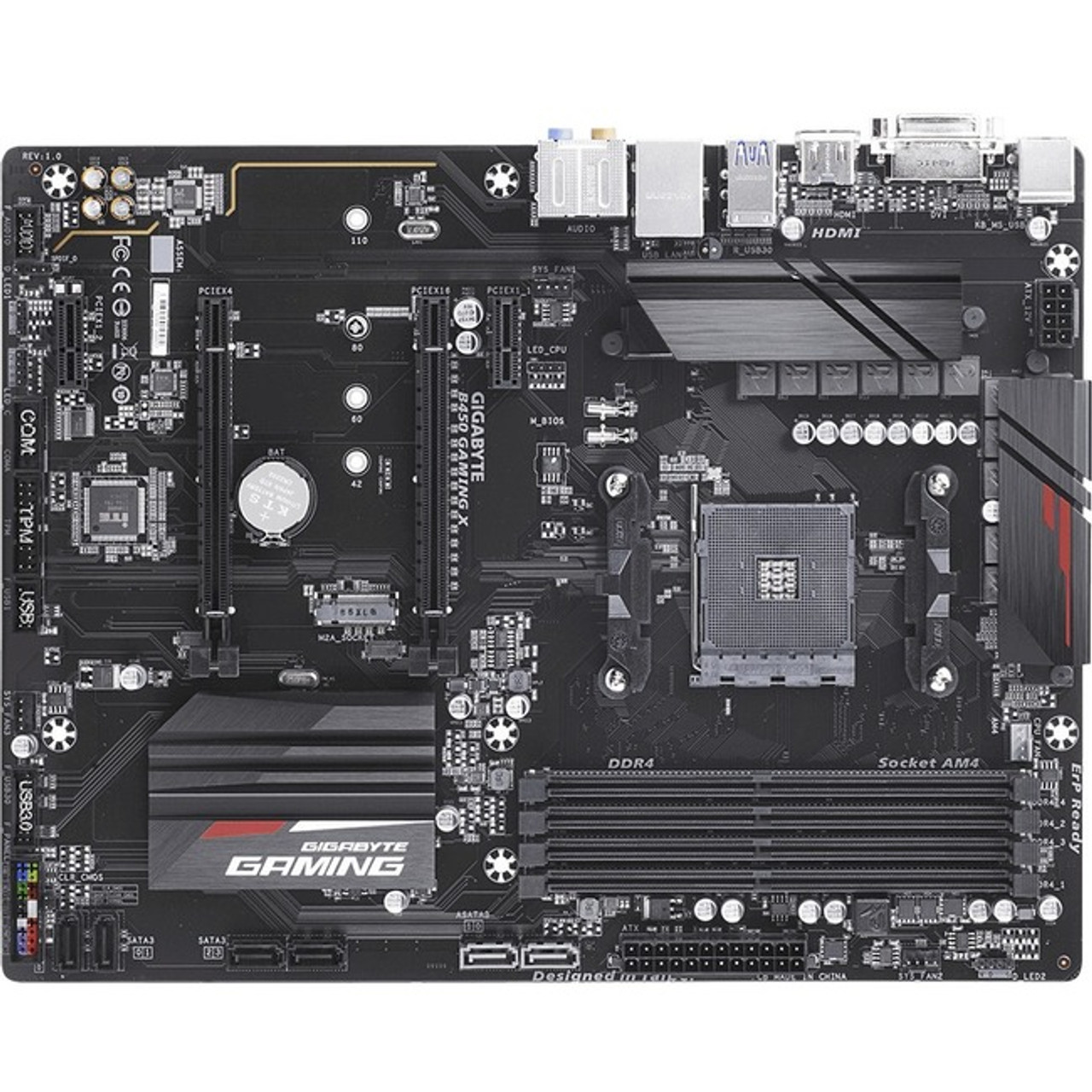

Gigabyte B450 GAMING X Desktop Motherboard - AMD Chipset - Socket AM4 - B450 GAMING X

Specifications
Manufacturer: GIGABYTE Technology, Inc
Manufacturer Part Number: B450 GAMING X
Manufacturer Website Address: http://www.gigabyte.us
Brand Name: Gigabyte
Product Model: B450 GAMING X
Product Name: B450 GAMING X Desktop Motherboard
Marketing Information:

• Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• HDMI, DVI-D Ports for Multiple Display
• Ultra-Fast NVMe PCIe Gen3 x4 M.2
• High Quality Audio Capacitors and Audio Noise Guard design
• RGB FUSION 2.0 with Addressable RGB & RGB LED Strips support
• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
• Smart Fan 5 Features 6 Temperature Sensors and 4 Hybrid Fan Headers with FAN STOP
• APP Center Including EasyTune™ and Cloud Station™ Utilities
• CEC 2019 Ready, Save Power with a Simple Click

AMD introduces the latest Ryzen™ 2000 series processors to provide the computing power for gaming need. GIGABYTE's B450 series motherboards perfectly fit the latest AMD Ryzen™ 2000 series processors' computing performance with more features and more control. Users can enjoy the benefits brought by AMD Ryzen™ 2000 series processors.

AMD StoreMI technology

GIGABYTE 400-series motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:

• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users' computing behaviors

CONNECTIVITY

Fast Onboard Storage with NVMe PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)

GIGABYTE M.2 solution offers considerably faster storage performance and support for NVME PCIe interfaces* for M.2 SSD devices.

Exclusive Realtek 8118 Gaming LAN

High Speed Gigabit LAN with Automatic Bandwidth Allocation

Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

COOLING

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Fan Pin Headers

Internal Temperature Sensors

Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.

FAN STOP

Intelligent Fan Control Design

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature-all of it can be customized to your liking.

Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Total Processor Supported: 1
Processor Socket: Socket AM4
Processor Supported:

• Ryzen 7
• Ryzen 5
• Ryzen 3
• Athlon
• Ryzen 7 PRO
• Ryzen 5 PRO
• Ryzen 3 PRO
• Athlon PRO

Memory
Number of Memory Slots: 4
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory: 64 GB
Memory Speed Supported:

• 2.93 GHz
• 2.67 GHz
• 2.40 GHz
• 2.13 GHz

Memory Technology: DDR4 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 10

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 8
Number of USB 3.1 Ports: 4
HDMI: Yes
DVI: Yes
Onboard Interfaces
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 4
Number of Onboard USB 3.1 Ports: 2
Physical Characteristics
Form Factor: ATX
Width: 12"
Depth: 9.3"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:

• ErP/EuP Ready
• WEEE
• RoHS
• China RoHS
