Product Description

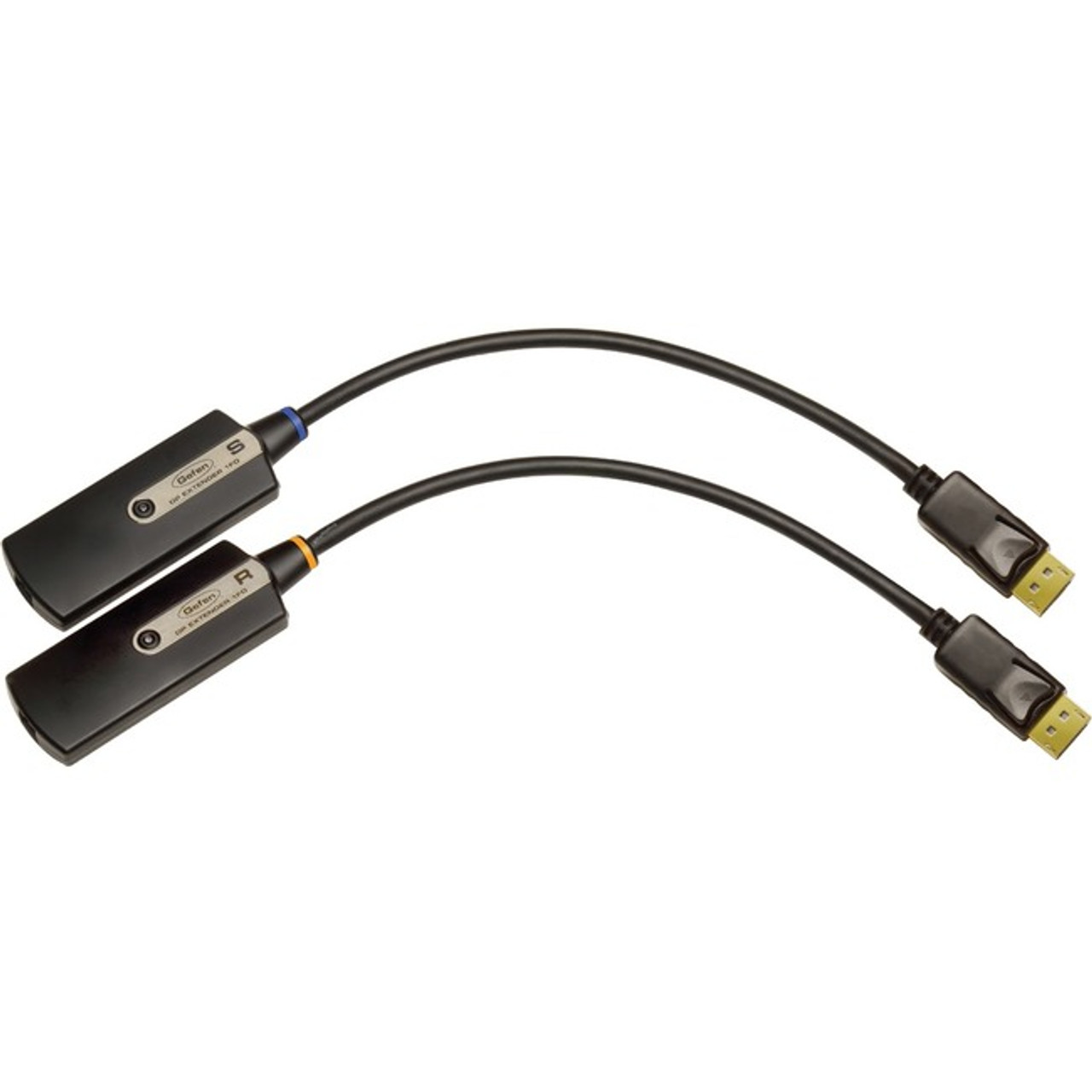

Gefen DisplayPort Fiber Optic (Pigtail Modules) - EXT-DP-CP-FM10
Specifications
Manufacturer: Gefen, Inc
Manufacturer Part Number: EXT-DP-CP-FM10
Manufacturer Website Address: http://www.gefen.com
Brand Name: Gefen
Product Name: DisplayPort Fiber Optic (Pigtail Modules)
Marketing Information:
The pigtail design of the Sender and Receiver modules relieves stress and clutter on the source and display connector panels. Their compact design makes them ideal for fitting neatly behind equipment for a clean installation, making it a great way to easily extend DisplayPort.
Product Type: Video Extender Transmitter/Receiver
Technical Information
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 3300 ft
Video
Graphics Modes: WQXGA
Maximum Video Resolution: 2560 x 1600
Interfaces/Ports
Number of SC Ports: 2
Media & Performance
Media Type Supported: Optical Fiber
Physical Characteristics
Transmitter Height: 0.47"
Transmitter Width: 1.50"
Transmitter Depth: 3.51"
Manufacturer: Gefen, Inc
Manufacturer Part Number: EXT-DP-CP-FM10
Manufacturer Website Address: http://www.gefen.com
Brand Name: Gefen
Product Name: DisplayPort Fiber Optic (Pigtail Modules)
Marketing Information:
Pigtail module DisplayPort extension using a single-strand multimode fiber optic cable with DPCP support
The DisplayPort fiber optic pigtail module extender with DPCP support extends a DisplayPort up to 3300 feet (1000 meters) using a single-strand 50/125µm multimode (OM2/OM3) SC-terminated fiber optic cable with resolutions up to 2560 x 1600 (WQXGA). Optical signal transmission provides galvanic isolation and immunity to electromagnetic interference compared to similar copper based extension modules.The pigtail design of the Sender and Receiver modules relieves stress and clutter on the source and display connector panels. Their compact design makes them ideal for fitting neatly behind equipment for a clean installation, making it a great way to easily extend DisplayPort.
Product Type: Video Extender Transmitter/Receiver
Technical Information
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 3300 ft
Video
Graphics Modes: WQXGA
Maximum Video Resolution: 2560 x 1600
Interfaces/Ports
Number of SC Ports: 2
Media & Performance
Media Type Supported: Optical Fiber
Physical Characteristics
Transmitter Height: 0.47"
Transmitter Width: 1.50"
Transmitter Depth: 3.51"
