Product Description
C2G 300ft HDBaseT Certified Cat6a Cable - Non-Continuous Shielding - CMP Plenum - 43178
Manufacturer: C2G
Manufacturer Part Number: 43178
Manufacturer Website Address: http://www.cablestogo.com
Brand Name: C2G

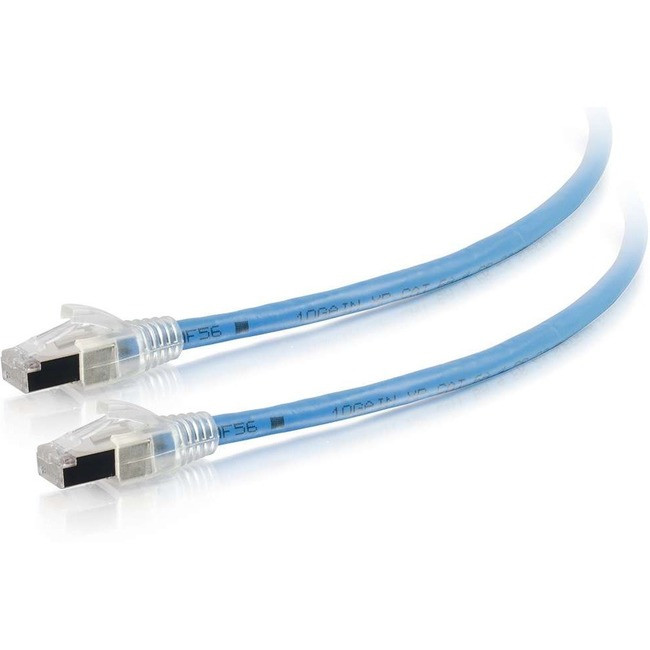

Product Name: 300ft HDBaseT Certified Cat6a Cable - Non-Continuous Shielding - CMP Plenum
Marketing Information:
This Snagless Discontinuous Shielded Cat6a patch cable is ideal for use with HD A/V applications such as HDBaseT extenders and Power over Ethernet (PoE) applications requiring higher levels of current. The HD A/V application is perfect for conference rooms and digital signage where greater distance requirements are needed between a source and a display. Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.
These cables have been tested and validated to guarantee they consistently meet the highest industry performance and safety standards. The uniquely designed Isolation Wrap contains discontinuous sections of metallized material, held in place by a polymeric layer. These cables have a nominal 0.265" diameter that allows for higher cable density and smaller bend radius than other Cat6a cable products. These cables are also designed for Power over Ethernet (PoE) applications type 1-4 according to IEEE 802.3bt draft D1.2.
These cables have discontinuous metallic shielding elements surrounding the inner 4-pair core of the cable. The effect of this approach is to attenuate both electromagnetic signals that emanate from the cable core and the potentially interfering electromagnetic signals that are generated by other sources. The metallic shielding elements are designed to be discontinuous to avoid any need for grounding, which is a requirement for shielded cable designs, and have been shown to provide superior Alien Crosstalk performance in comparison to conventionally designed Category 6A UTP cables.
Product Type: Network Cable
Technical Information
Cable Type: Category 6a
Cable Characteristic: Patch Cable
Cable Length: 300 ft
Connector on First End: 1 x RJ-45 Male Network
Connector on Second End: 1 x RJ-45 Male Network
Contact Plating: Gold
Features:
- Snagless
- PoE
- Crosstalk Protection
- Molded
Shielding: Yes
Device Supported: Network Device
American Wire Gauge: 23 AWG
Data Transfer Rate: 10 Gbit/s
Physical Characteristics
Color: Blue
Weight (Approximate): 12.25 lb
Miscellaneous
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification:
- RoHS
- RoHS 2
- REACH
