Product Description

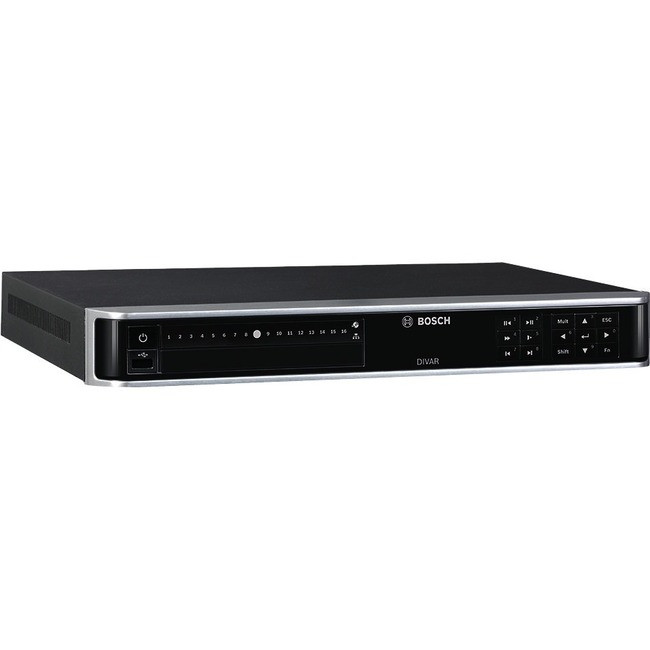

Bosch DDN-2516-112D16 Recorder 16ch 1x2TB 16PoE DVD - DDN-2516-112D16
Specifications
Manufacturer: The Bosch Group
Manufacturer Part Number: DDN-2516-112D16
Manufacturer Website Address: http://www.bosch.com
Brand Name: Bosch
Product Line: DIVAR
Product Series: 2000
Product Name: DDN-2516-112D16 Recorder 16ch 1x2TB 16PoE DVD
Marketing Information:
Connect this recorder to a maximum of 16 IP cameras that use the latest H265/H264 high-resolution video technology and state-of-the-art compression techniques.
These advanced technologies, coupled with efficient network data transmission, deliver the high security and reliability required for modern surveillance systems. Simultaneous remote or local monitoring, recording, archive and playback functions are guided by simple menu selections and operator commands. The recorders can be installed with a maximum of 2 internal HDDs for video storage. Another option is a single HDD for storage, plus a DVD burner for video export.
Functions
Latest video compression technology
The DIVAR supports H.264 video compression technology and is H.265-ready for the newest H.265 technology cameras to be released by Bosch. This technology dramatically reduces bandwidth and storage requirements while still delivering superb image and audio quality. Equipped with this newest video technology, DIVAR gives you the full benefits of the latest high-resolution cameras. The proof is in the pixels.
Simultaneous record and view
The DIVAR records multiple video and audio signals while simultaneously providing live multi-screen viewing and playback. Comprehensive search and playback functions provide quick recall and viewing of recorded video.
The DIVAR has a real-time display resolution of 1080p for 8 channels simultaneously, or 4K for 2 channels.
PoE switch
The recorders with a built-in PoE switch can supply power to a maximum of 16 connected cameras. Each camera automatically receives its IP address from the recorder for simple plug-and-play operation.
Simple operation
The DIVAR is very easy to install and use. Simply connect the cameras, apply power, and follow the simple Install Wizard steps for initial setup. The unit can then record automatically with no further intervention required.
DDNS
Bosch offers its customers free Dynamic Domain Name Services (DDNS) for access to network-connected devices via a "friendly" hostname without the need for costly static IP addresses. This makes it easier for uninterrupted access to important video from devices regardless of their location.
Alarms
All models have extensive alarm handling functions and telemetry control. Alarm functions include local inputs and relay outputs, plus motion detection in user-defined areas. If an alarm is detected, the DIVAR can:
Local control
The unit can be easily operated and programmed via the on-screen display menu system using:
Video inputs, audio inputs/output, and alarm inputs/ outputs are located on the rear panel. Two video connectors (VGA/HDMI) provide simultaneous output for monitor A for live display (with zoom) and playback (display can be frozen and zoomed). The displays allow full-screen, multi-screen, and sequenced viewing.
Dome control
The DIVAR can control pan/tilt/zoom (PTZ) equipment using commands sent via IP connection (using ONVIF protocol for supported devices).
Product Type: Video Surveillance Station
Technical Information
Connectivity Technology: Wired
HD Recording: Yes
System Components: Network Video Recorder
Total Number of Channels: 16
Storage
Hard Drive: 2 TB
Optical Drive Type: DVD-Writer
Video
Video Formats:
Maximum Resolution: 1920 x 1080
Network & Communication
Ethernet: Yes
Remote Management: Yes
Interfaces/Ports
USB: Yes
Total Number of Audio In Ports: 1
Total Number of Audio Out Ports: 1
Number of VGA Out: 1
HDMI: Yes
Physical Characteristics
Height: 2.1"
Width: 14.8"
Depth: 12.7"
Weight (Approximate): 9.26 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Manufacturer: The Bosch Group
Manufacturer Part Number: DDN-2516-112D16
Manufacturer Website Address: http://www.bosch.com
Brand Name: Bosch
Product Line: DIVAR
Product Series: 2000
Product Name: DDN-2516-112D16 Recorder 16ch 1x2TB 16PoE DVD
Marketing Information:
- 16 IP channels with 256 Mbps incoming bandwidth
- 8 MP (UHD) IP camera support for view and playback
- Real time live display for 8 channels @1080p or 2 channels @4k
- Compact, sturdy and stylish design
Connect this recorder to a maximum of 16 IP cameras that use the latest H265/H264 high-resolution video technology and state-of-the-art compression techniques.
These advanced technologies, coupled with efficient network data transmission, deliver the high security and reliability required for modern surveillance systems. Simultaneous remote or local monitoring, recording, archive and playback functions are guided by simple menu selections and operator commands. The recorders can be installed with a maximum of 2 internal HDDs for video storage. Another option is a single HDD for storage, plus a DVD burner for video export.
Functions
Latest video compression technology
The DIVAR supports H.264 video compression technology and is H.265-ready for the newest H.265 technology cameras to be released by Bosch. This technology dramatically reduces bandwidth and storage requirements while still delivering superb image and audio quality. Equipped with this newest video technology, DIVAR gives you the full benefits of the latest high-resolution cameras. The proof is in the pixels.
Simultaneous record and view
The DIVAR records multiple video and audio signals while simultaneously providing live multi-screen viewing and playback. Comprehensive search and playback functions provide quick recall and viewing of recorded video.
The DIVAR has a real-time display resolution of 1080p for 8 channels simultaneously, or 4K for 2 channels.
PoE switch
The recorders with a built-in PoE switch can supply power to a maximum of 16 connected cameras. Each camera automatically receives its IP address from the recorder for simple plug-and-play operation.
Simple operation
The DIVAR is very easy to install and use. Simply connect the cameras, apply power, and follow the simple Install Wizard steps for initial setup. The unit can then record automatically with no further intervention required.
DDNS
Bosch offers its customers free Dynamic Domain Name Services (DDNS) for access to network-connected devices via a "friendly" hostname without the need for costly static IP addresses. This makes it easier for uninterrupted access to important video from devices regardless of their location.
Alarms
All models have extensive alarm handling functions and telemetry control. Alarm functions include local inputs and relay outputs, plus motion detection in user-defined areas. If an alarm is detected, the DIVAR can:
- send an e-mail notification and/or FTP push
- sound a buzzer and/or display a warning
- activate local alarm output
Local control
The unit can be easily operated and programmed via the on-screen display menu system using:
- the supplied mouse
- the front panel control keys
- the supplied remote control
Video inputs, audio inputs/output, and alarm inputs/ outputs are located on the rear panel. Two video connectors (VGA/HDMI) provide simultaneous output for monitor A for live display (with zoom) and playback (display can be frozen and zoomed). The displays allow full-screen, multi-screen, and sequenced viewing.
Dome control
The DIVAR can control pan/tilt/zoom (PTZ) equipment using commands sent via IP connection (using ONVIF protocol for supported devices).
Product Type: Video Surveillance Station
Technical Information
Connectivity Technology: Wired
HD Recording: Yes
System Components: Network Video Recorder
Total Number of Channels: 16
Storage
Hard Drive: 2 TB
Optical Drive Type: DVD-Writer
Video
Video Formats:
- Motion JPEG
- H.264
- H.265
Maximum Resolution: 1920 x 1080
Network & Communication
Ethernet: Yes
Remote Management: Yes
Interfaces/Ports
USB: Yes
Total Number of Audio In Ports: 1
Total Number of Audio Out Ports: 1
Number of VGA Out: 1
HDMI: Yes
Physical Characteristics
Height: 2.1"
Width: 14.8"
Depth: 12.7"
Weight (Approximate): 9.26 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
