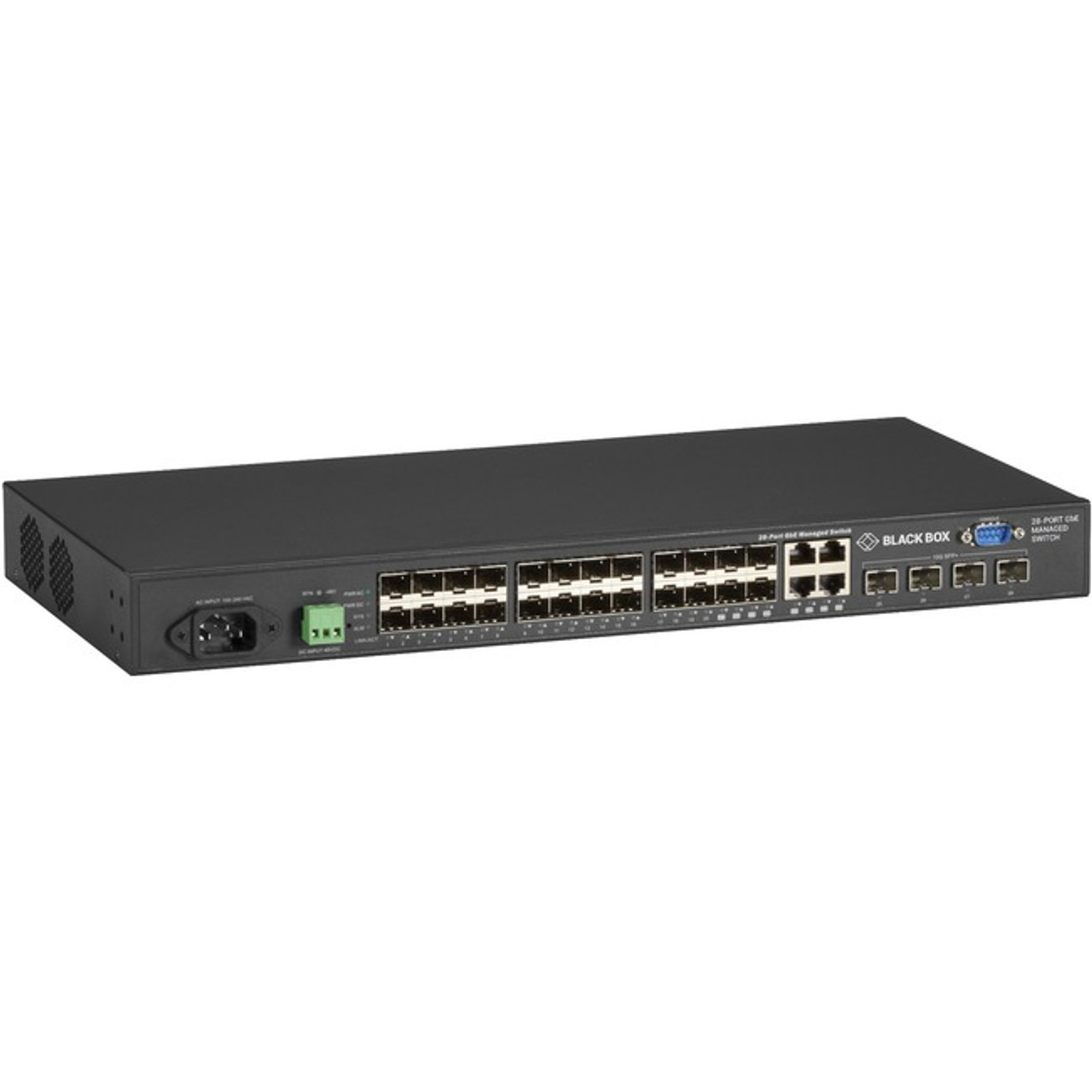

Black Box - Gigabit Managed Ethernet SFP Fiber Switch - 28-Port - LGB5128A-R2

Specifications
Manufacturer: Black Box Corporation
Manufacturer Part Number: LGB5128A-R2
Manufacturer Website Address: http://www.blackbox.com
Brand Name: Black Box
Product Name: Gigabit Managed Ethernet SFP Fiber Switch - 28-Port
Marketing Information:

This advanced, fully-manageable Layer 2 switch gives you networking versatility. It features 28 high-speed fiber ports: (4) 1-Gbps/10-Gbps SFP fiber ports, (20) 100-/1000-Mbps SFP fiber ports, and (4) dual-media 100-/1000-Mbps SFP/twisted-pair ports.

This all fiber switch gives you the flexibility to select a variety of ranges with SFP transceivers.

Advanced functions in an economical package.

This switch offers advanced switching and security features normally found in more expensive switches. You'll get extensive management capabilities, greater bandwidth control, and QoS for switching in VoIP and other real-time, high-performance applications.

Pack up the trunk.

To provide more bandwidth to a specific application or segment, combine ports using the switch's 802.3ad Link Aggregate Control Protocol (LACP) capabilities. With this bandwidth aggregation feature, the combined ports create a multilink trunk for load sharing. The switch supports 14 groups with 8 ports per group.

High-level service.

The switch offers extensive Quality of Service support including prioritization, classification, scheduling, rate limitations, and more. The switch also supports eight hardware queues.

Safe and secure.

Your network is safe with this switch. It also offers MAC address filtering and VLAN capabilities so you can segregate networks.

Multiple management options.

Monitor, configure, and control the switch via its RS-232 serial port, or through Ethernet using CLI or Web-based management.

Green

The SFP Gigabit/10-Gigabit Managed Fiber Switch Eco features IEEE 802.3az energy-efficient Ethernet, which scales down power consumption during periods of low data activity. This feature adds up to energy savings of up to 50%.

SFPs

For the SFP slots, order SFP modules, such as the 850-nm Multimode Gigabit SFP Module (LFP411) and 1310-nm Single-mode Gigabit SFP Module (LFP412). For information on SFP module compatibility, contact our FREE Tech Support)

Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 4
Modular: Yes
Port/Expansion Slot Details:

• 20 x Gigabit Ethernet Expansion Slot
• 4 x Gigabit Ethernet Network
• 4 x 10 Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology:

• Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology:

• 10GBase-X
• 1000Base-X
• 10/100/1000Base-T

I/O Expansions
Number of Total Expansion Slots: 8
Expansion Slot Type:

• SFP
• SFP+

Shared SFP Slot: Yes
Number of SFP Slots: 4
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7"
Width: 17.4"
Depth: 8.3"
Weight (Approximate): 6.83 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:

• WEEE
• RoHS

TAA Compliant: Yes
