Product Description

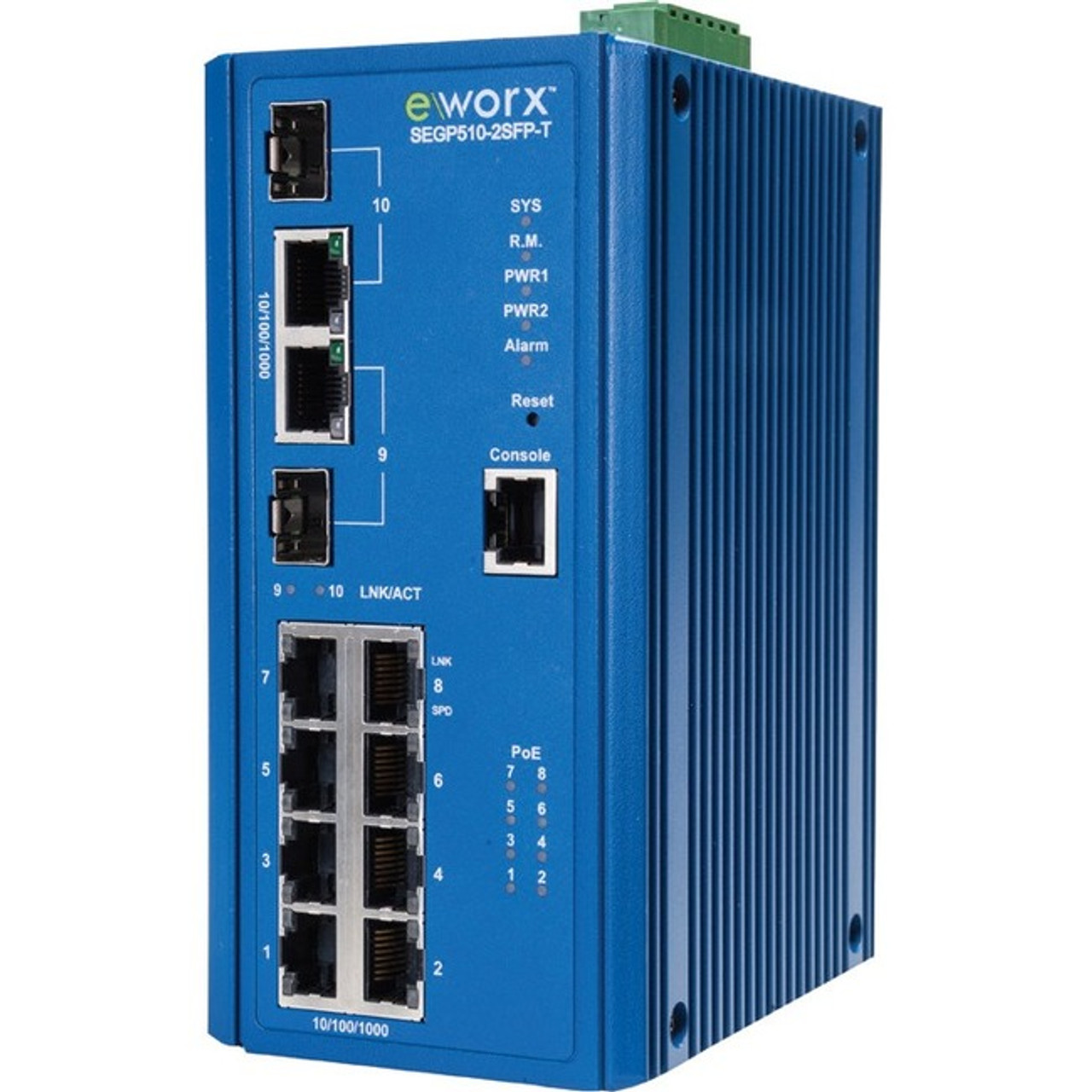

B+B SmartWorx Managed Ethernet Switch 10 port, PoE+, Gigabit, Modbus/TCP - SEGP510-2SFP-T
Specifications
Manufacturer: Advantech Co., Ltd
Manufacturer Part Number: SEGP510-2SFP-T
Manufacturer Website Address: http://www.advantech.com
Brand Name: B+B SmartWorx
Product Line: eWorx
Product Series: SE500
Product Model: SEGP510-2SFP-T
Product Name: Managed Ethernet Switch 10 port, PoE+, Gigabit, Modbus/TCP
Marketing Information: Get all the features you are already looking for in a managed switch
SE500 Series includes the features you are already looking for in a managed switch such as VLAN, IGMP Snooping, Network Redundancy, Link Aggregation, SNMP V1,V2c,V3, Web and Telnet support. Smart PoE Management features allow advanced PoE settings and monitoring. Also included are comprehensive network security features such as SSH, HTTPS/SSL, TLS, TTLS, PEAP and Radius are also offered.
Avoid paying for extra NMS software for multiple switch deployment
Embedded into each switch is the industry leading eWorx's IXM(TM) cross management technology. IXM(TM) allows the installer to auto synchronize firmware updates and push configuration settings to either individual or groups of switches. IXM(TM), provides maintenance and provisioning functionality to both the SE500 and SE300 family switches without the need of extra software or trained personal. IXM(TM) speeds up switch deployment and ensures network stability.
Get a simple, easy-to-navigate web GUI
With all SE500 series switches, you'll get a simple, easy-to-use web GUI to manage a powerful suite of diagnostic, monitoring and network performance capabilities, including but not limited to cable diagnostics, IPv4/IPv6 ping, Fiber SFP monitoring (DDMI), System log, port utilization, traffic statistics, QoS, rate limiting and more.
Reduce your redundant network cabling and planning costs through X-Ring ™ technology
Our sub-20ms self-healing X-Ring ™ rapid auto recovery technology allows different ring healing methods to coexist in one switch and supports different topology options, providing you a substantial improvement over Spanning Tree and Rapid Spanning Tree.
Different ring-healing methods include couple ring, dual homing and multi-couple ring.
Protect your investment against unforeseeable congestion and performance issues
The SE500 series offers a full gigabit option, allowing speeds up to 10 times greater than the previous generation, resulting in less congestion and better overall performance for the entire network.
Get equipment certified to work in harsh environment applications
Our switches are made with dual wide-range power input design (84.V to 62.4 VDC), self-healing network resiliency (less than 10(ms) @ 250 units), wide temperature tolerance (-40 to 75°C), MTBF (Mean time between failures) over 50 years, High Electrical Magnetic (EMC) resistance, Level 4 design, IEEE 1613 Class 2 Complaint
Reduce total cost of ownership by cutting power usage by up to 60%
As Ethernet Green®, IEEE802.3az Energy-Efficient Ethernet switches, SE500 series switches eWorx Switches cut power usage by up to 60%, reducing total cost of ownership.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 10
Uplink Port: Yes
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:
Media & Performance
Media Type Supported:
Ethernet Technology: Gigabit Ethernet
Network Technology:
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP
Shared SFP Slot: Yes
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Form Factor:
Height: 6"
Width: 2.9"
Depth: 4.1"
Weight (Approximate): 2.87 lb
Manufacturer: Advantech Co., Ltd
Manufacturer Part Number: SEGP510-2SFP-T
Manufacturer Website Address: http://www.advantech.com
Brand Name: B+B SmartWorx
Product Line: eWorx
Product Series: SE500
Product Model: SEGP510-2SFP-T
Product Name: Managed Ethernet Switch 10 port, PoE+, Gigabit, Modbus/TCP
Marketing Information: Get all the features you are already looking for in a managed switch
SE500 Series includes the features you are already looking for in a managed switch such as VLAN, IGMP Snooping, Network Redundancy, Link Aggregation, SNMP V1,V2c,V3, Web and Telnet support. Smart PoE Management features allow advanced PoE settings and monitoring. Also included are comprehensive network security features such as SSH, HTTPS/SSL, TLS, TTLS, PEAP and Radius are also offered.
Avoid paying for extra NMS software for multiple switch deployment
Embedded into each switch is the industry leading eWorx's IXM(TM) cross management technology. IXM(TM) allows the installer to auto synchronize firmware updates and push configuration settings to either individual or groups of switches. IXM(TM), provides maintenance and provisioning functionality to both the SE500 and SE300 family switches without the need of extra software or trained personal. IXM(TM) speeds up switch deployment and ensures network stability.
Get a simple, easy-to-navigate web GUI
With all SE500 series switches, you'll get a simple, easy-to-use web GUI to manage a powerful suite of diagnostic, monitoring and network performance capabilities, including but not limited to cable diagnostics, IPv4/IPv6 ping, Fiber SFP monitoring (DDMI), System log, port utilization, traffic statistics, QoS, rate limiting and more.
Reduce your redundant network cabling and planning costs through X-Ring ™ technology
Our sub-20ms self-healing X-Ring ™ rapid auto recovery technology allows different ring healing methods to coexist in one switch and supports different topology options, providing you a substantial improvement over Spanning Tree and Rapid Spanning Tree.
Different ring-healing methods include couple ring, dual homing and multi-couple ring.
Protect your investment against unforeseeable congestion and performance issues
The SE500 series offers a full gigabit option, allowing speeds up to 10 times greater than the previous generation, resulting in less congestion and better overall performance for the entire network.
Get equipment certified to work in harsh environment applications
Our switches are made with dual wide-range power input design (84.V to 62.4 VDC), self-healing network resiliency (less than 10(ms) @ 250 units), wide temperature tolerance (-40 to 75°C), MTBF (Mean time between failures) over 50 years, High Electrical Magnetic (EMC) resistance, Level 4 design, IEEE 1613 Class 2 Complaint
Reduce total cost of ownership by cutting power usage by up to 60%
As Ethernet Green®, IEEE802.3az Energy-Efficient Ethernet switches, SE500 series switches eWorx Switches cut power usage by up to 60%, reducing total cost of ownership.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 10
Uplink Port: Yes
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:
- 8 x Gigabit Ethernet Network
- 4 x Gigabit Ethernet Uplink
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology: Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 1000Base-X
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP
Shared SFP Slot: Yes
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Form Factor:
- Wall Mountable
- Rail-mountable
Height: 6"
Width: 2.9"
Depth: 4.1"
Weight (Approximate): 2.87 lb
