Product Description

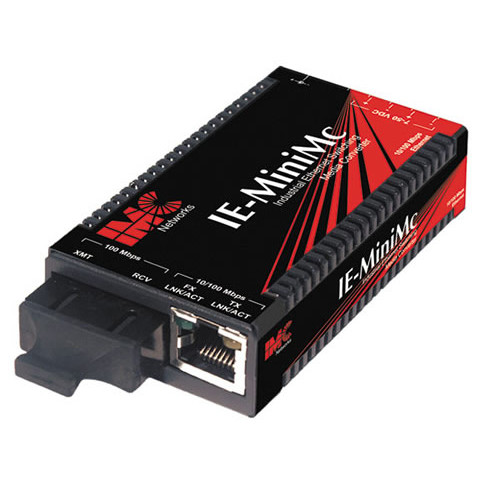

B&B IE-MiniMc, TP-TX/FX-SM1310/PLUS-ST - 855-19724
Specifications
Manufacturer: Advantech Co., Ltd
Manufacturer Part Number: 855-19724
Manufacturer Website Address: http://www.advantech.com
Brand Name: B+B SmartWorx
Product Line: IE-MiniMc
Product Name: IE-MiniMc Transceiver/Media Converter
Marketing Information: Measuring less than 3.5 inches deep and 2 inches wide, the IE-MiniMc Series converters are some of the industry's smallest copper-to-fiber media converters, with both data connections on the same side. The IE-MiniMc family of media converters are a fraction of the cost of other industrial grade alternatives. These products provide the ease and convenience of plug-and-play operation with features including Auto Negotiation and Auto-Cross.
Multiple powering options include Power over Ethernet (PoE/PD), AC wall adapter and USB, which offers unsurpassed flexibility for a variety of installations.
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 2
Network (RJ-45): Yes
DVI: No
USB: No
Management Port: No
Number of Network (RJ-45) Ports: 1
Number of ST Ports: 1
Media & Performance
Media Type Supported:
Fiber Mode Supported: Single-mode
Maximum Distance Supported: 18.64 Mile
Network & Communication
Ethernet Technology: Fast Ethernet
Network Technology:
Physical Characteristics
Form Factor:
Height: 0.8"
Width: 1.8"
Depth: 3.4"
Manufacturer: Advantech Co., Ltd
Manufacturer Part Number: 855-19724
Manufacturer Website Address: http://www.advantech.com
Brand Name: B+B SmartWorx
Product Line: IE-MiniMc
Product Name: IE-MiniMc Transceiver/Media Converter
Marketing Information: Measuring less than 3.5 inches deep and 2 inches wide, the IE-MiniMc Series converters are some of the industry's smallest copper-to-fiber media converters, with both data connections on the same side. The IE-MiniMc family of media converters are a fraction of the cost of other industrial grade alternatives. These products provide the ease and convenience of plug-and-play operation with features including Auto Negotiation and Auto-Cross.
Multiple powering options include Power over Ethernet (PoE/PD), AC wall adapter and USB, which offers unsurpassed flexibility for a variety of installations.
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 2
Network (RJ-45): Yes
DVI: No
USB: No
Management Port: No
Number of Network (RJ-45) Ports: 1
Number of ST Ports: 1
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Fiber Mode Supported: Single-mode
Maximum Distance Supported: 18.64 Mile
Network & Communication
Ethernet Technology: Fast Ethernet
Network Technology:
- 10/100Base-TX
- 100Base-FX
Physical Characteristics
Form Factor:
- Desktop
- Rail-mountable
- Wall Mountable
Height: 0.8"
Width: 1.8"
Depth: 3.4"
