Product Description

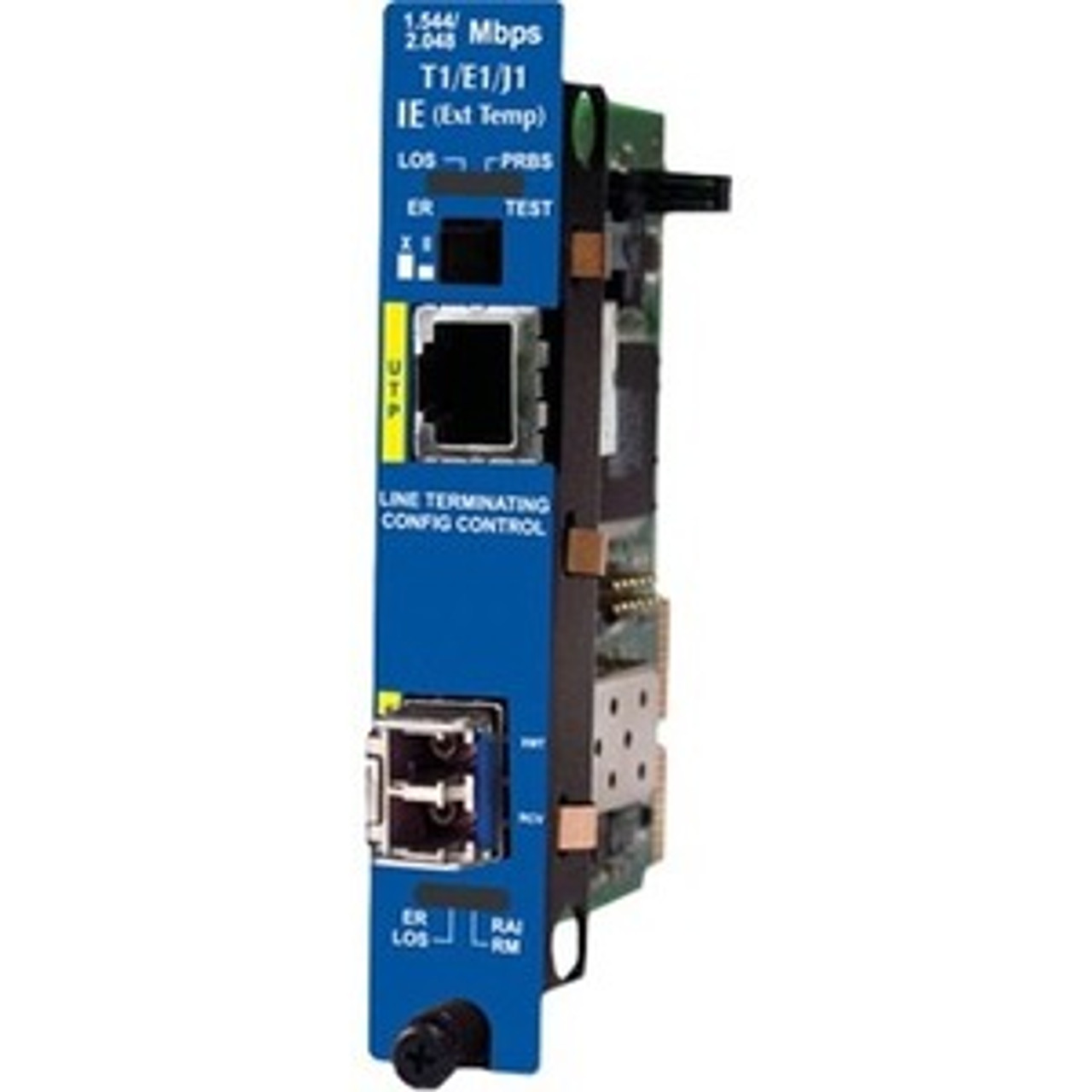

B+B SmartWorx T1/E1/J1 Media Converter - 850-18103
Specifications
Manufacturer: Advantech Co., Ltd
Manufacturer Part Number: 850-18103
Manufacturer Website Address: http://www.advantech.com
Brand Name: B+B SmartWorx
Product Name: T1/E1/J1 Media Converter
Marketing Information: SNMP-manageable, the iMcV-T1/E1/J1 converter series of modules extend 1.544 Mbps T1/J1 and 2.048 Mbps E1 copper-based PBX, router and switch circuits over regular duplex fiber or single-strand fiber optics. Supporting fiber distances of up to 80 km, the iMcV-T1/ E1/J1 series of converters include built-in jitter removal, line integrity testing, diagnostic tools (Loopback mode and Transmit Data Source) and remote management features.
Select from the iMcV-T1/E1/J1, offering standard repeater-like functionality, or the IE-iMcV-T1/E1/J1-LineTerm which incorporates advanced features such as Line Terminating functionality and config control, support for both Alarm Indication Signals (AIS) and Remote Alarm Indications (RAI).
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 2
Network (RJ-45): No
DVI: No
USB: No
Management Port: No
Number of ST Ports: 1
Media & Performance
Media Type Supported: Optical Fiber
Fiber Mode Supported: Multi-mode
Maximum Distance Supported: 3.11 Mile
Fiber Optic Cable Standard:
Network & Communication
Network Technology: T1/E1/J1
Physical Characteristics
Form Factor: Internal
Height: 4.2"
Width: 0.8"
Depth: 2.8"
Manufacturer: Advantech Co., Ltd
Manufacturer Part Number: 850-18103
Manufacturer Website Address: http://www.advantech.com
Brand Name: B+B SmartWorx
Product Name: T1/E1/J1 Media Converter
Marketing Information: SNMP-manageable, the iMcV-T1/E1/J1 converter series of modules extend 1.544 Mbps T1/J1 and 2.048 Mbps E1 copper-based PBX, router and switch circuits over regular duplex fiber or single-strand fiber optics. Supporting fiber distances of up to 80 km, the iMcV-T1/ E1/J1 series of converters include built-in jitter removal, line integrity testing, diagnostic tools (Loopback mode and Transmit Data Source) and remote management features.
Select from the iMcV-T1/E1/J1, offering standard repeater-like functionality, or the IE-iMcV-T1/E1/J1-LineTerm which incorporates advanced features such as Line Terminating functionality and config control, support for both Alarm Indication Signals (AIS) and Remote Alarm Indications (RAI).
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 2
Network (RJ-45): No
DVI: No
USB: No
Management Port: No
Number of ST Ports: 1
Media & Performance
Media Type Supported: Optical Fiber
Fiber Mode Supported: Multi-mode
Maximum Distance Supported: 3.11 Mile
Fiber Optic Cable Standard:
- 50/125 µm
- 62.5/125 µm
Network & Communication
Network Technology: T1/E1/J1
Physical Characteristics
Form Factor: Internal
Height: 4.2"
Width: 0.8"
Depth: 2.8"
