Product Description

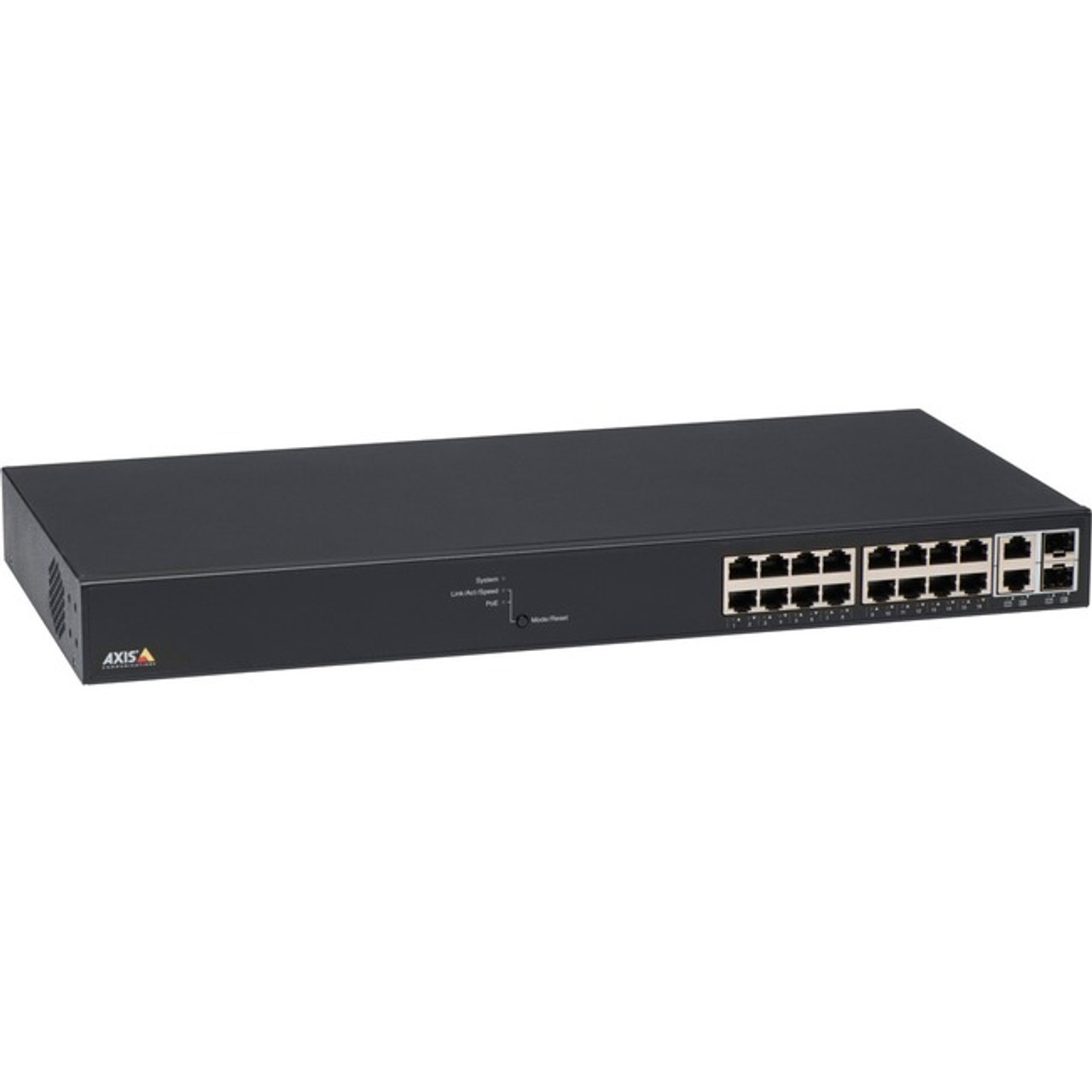

AXIS T8516 PoE+ Network Switch - 5801-694
Manufacturer: Axis Communications
Manufacturer Part Number: 5801-694
Manufacturer Website Address: http://www.axis.com
Brand Name: AXIS
Product Model: T8516
Product Name: T8516 PoE+ Network Switch
Marketing Information:
AXIS T8516 PoE+ Network Switch is an easy-to-install network switch optimized for surveillance solutions, that comes with an unique web graphic user interface with topology for easy overview and management of all devices in the system.
Easy to install and configure
AXIS T8516 PoE+ Network Switch, just as Axis product portfolio, is easy to install by using standard Axis tools as AXIS IP utility and AXIS Camera Management. AXIS T8516 also comes with an individual password and easy to use setup wizard.
AXIS T8516 comes with a comprehensive set of configuration tools such as an integrated DHCP server for automatic assignment of IP addresses. It also allows for even more advanced network configuration such as VLAN, QoS, Security, and Spanning tree to further optimize the total solution.
Perfect match for Axis surveillance solutions
AXIS T8516 PoE+ Network Switch is made for the surveillance industry and a perfect complement to Axis recorders such as AXIS Camera Station S10 Series. This to simplify further setup and installation of the surveillance systems.
Total overview with unique web graphic user interface
The unique web graphic user interface offers a graphic topology for easy overview of all devices in the system. The graphic user interface provides information, status and notifications about connected devices. It allows for management of all connected devices, reboot of cameras in the system, monitoring of network traffic, cable diagnostics and much more.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 18
Uplink Port: No
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:
- 18 x Gigabit Ethernet Network
- 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology: Gigabit Ethernet
Network Technology:
- 1000Base-X
- 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP
Shared SFP Slot: Yes
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Form Factor:
- Desktop
- Rack-mountable
Height: 1.7"
Width: 17.4"
Depth: 8.3"
Weight (Approximate): 6.61 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
- WEEE
- REACH
- RoHS
Country of Origin: China
