Product Description
ATEN CL5716I LCD KVM Over IP Switch With Standard Rack Mount Kit-TAA Compliant - CL5716IN
Manufacturer: ATEN Technology Inc
Manufacturer Part Number: CL5716IN
Manufacturer Website Address: http://www.aten-usa.com
Brand Name: ATEN
Product Line: Slideaway
Product Model: CL5716IN
Product Name: CL5716I LCD KVM Over IP Switch With Standard Rack Mount Kit
Marketing Information:
The CL5716I Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716I can control up to 16 computers. As many as 15 additional KVM switches can be daisychained to the CL5716I, so that up to 256 computers can all be controlled from a single KVM console.
The CL5716I LCD KVM Switch is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers. Remote users access the switches over the Internet by means of a web browser using TCP/IP for its remote communications protocol. The CL5716I supports up to 32 concurrent user logins for a single-bus computer access. A built-in feature that resembles an Internet chat program - the Message Board - lets them communicate with each other. The ability to exchange information in real time allows them to cooperatively manage the installation in a smooth and efficient manner.

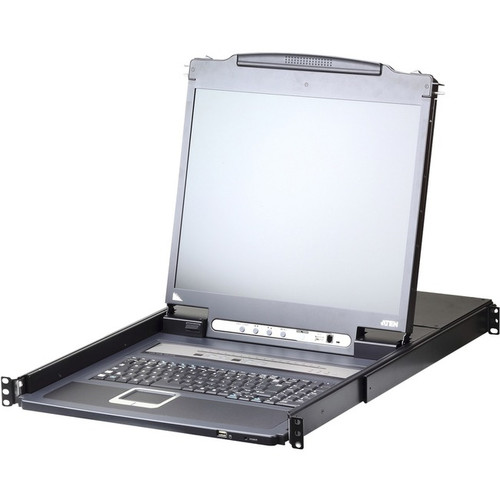

The CL5716I offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. In addition, since the CL5716I is built on a modular design, the KVM section can be detached from the switch section for convenient maintenance and repair.
Among CL5716I's other outstanding features, the Panel Array Mode provides the ability to monitor the video output of the servers on the installation; while the Mouse DynaSync™ feature automatically synchronizes the local and remote mouse pointer movements for perfect alignment regardless of what the mouse acceleration settings on the server are.
The CL5716I supports the highest security protocols, such as TLS 1.2 encryption for the browser, and RC4 128 bit encryption for secure keyboard, mouse, and video data transmission. For easier and more efficient user management integration, the CL5716I also supports authentication and authorization via 3rd party authorized servers, such as RADIUS, LDAP, LDAPS, and MS Active Directory.
Product Type: LCD Rack Console
Technical Information
KVM Switch: Yes
KVM Technology: Digital
Number of Computers Supported: 16
Daisy Chain: Yes
Display & Graphics
Screen Size: 19"
Display Screen Type: LCD
Screen Mode: WUXGA
Screen Resolution: 1920 x 1200
Input Devices
Keyboard: Yes
Pointing Device Type: TouchPad
Interfaces/Ports
Network (RJ-45): Yes
USB: Yes
Number of Network (RJ-45) Ports: 1
Number of USB Ports: 1
Number of Proprietary Ports: 17
Power Description
Input Voltage Range: 120 V AC - 230 V AC
Physical Characteristics
Material:
- Metal
- Plastic
Rack Height: 1U
Height: 1.7"
Width: 27.1"
Depth: 18.9"
Weight (Approximate): 30.14 lb
Miscellaneous
Platform Supported:
- Mac
- PC
- Linux
- Sun
Environmentally Friendly: Yes
Environmental Certification:
- RoHS
- WEEE
