Product Description

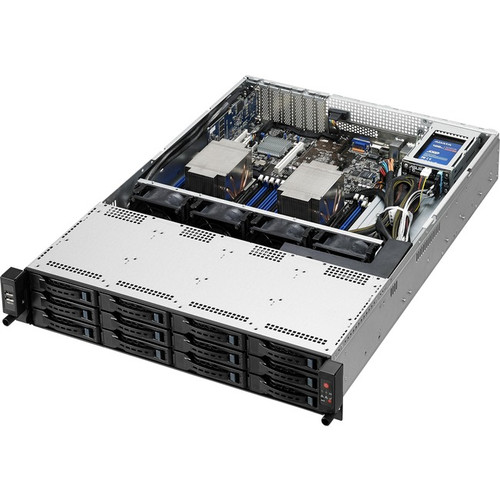

Asus RS520-E8-RS12-E Barebone System - 2U Rack-mountable - Intel C612 Chipset - Socket LGA 2011-v3 - RS520-E8-RS12-E
Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: RS520-E8-RS12-E
Manufacturer Website Address: http://usa.asus.com
Brand Name: Asus
Product Model: RS520-E8-RS12-E
Product Name: RS520-E8-RS12-E Barebone System
Marketing Information: Exceptionally-High Storage Density with Premium Efficiency
Product Type: Barebone System
Processor & Chipset
Number of Processors Supported: 2
Processor Socket: Socket LGA 2011-v3
Processor Supported: Xeon
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C612
Memory
Maximum Memory: 1 TB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2133/PC4-17000
Number of Total Memory Slots: 16
Controllers
Controller Type: Serial ATA/600
RAID Supported: Yes
Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Graphics Memory Capacity: 32 MB
Network & Communication
Ethernet Technology: Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 14
Number of 3.5" Bays: 12
Number of Internal 2.5" Bays: 2
Number of Total Expansion Slots: 4
Number of PCI Express x8 Slots: 3
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 2
Number of SATA Interfaces: 9
Software
Operating System Supported:
Power Description
Maximum Power Supply Wattage: 770 W
Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 2U
Height: 3.5"
Width: 17.5"
Depth: 24.2"
Weight (Approximate): 50.71 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Manufacturer: ASUS Computer International
Manufacturer Part Number: RS520-E8-RS12-E
Manufacturer Website Address: http://usa.asus.com
Brand Name: Asus
Product Model: RS520-E8-RS12-E
Product Name: RS520-E8-RS12-E Barebone System
Marketing Information: Exceptionally-High Storage Density with Premium Efficiency
RS520-E8-RS12-E is a 2U rack server that offers diverse RAID storage, exceptionally-high storage density, an optimized user experience. Engineered premium components for premium efficiency,RS520-E8-RS12-E is an ideal choice for datacenters and other high-performance enterprise applications.
Product Type: Barebone System
Processor & Chipset
Number of Processors Supported: 2
Processor Socket: Socket LGA 2011-v3
Processor Supported: Xeon
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C612
Memory
Maximum Memory: 1 TB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2133/PC4-17000
Number of Total Memory Slots: 16
Controllers
Controller Type: Serial ATA/600
RAID Supported: Yes
Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Graphics Memory Capacity: 32 MB
Network & Communication
Ethernet Technology: Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 14
Number of 3.5" Bays: 12
Number of Internal 2.5" Bays: 2
Number of Total Expansion Slots: 4
Number of PCI Express x8 Slots: 3
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 2
Number of SATA Interfaces: 9
Software
Operating System Supported:
- Windows Server 2012 R2
- Windows Server 2012
- Windows Server 2008 R2
- Red Hat Enterprise Linux
- SuSE Linux Enterprise Server
- CentOS
- Ubuntu Server
Power Description
Maximum Power Supply Wattage: 770 W
Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 2U
Height: 3.5"
Width: 17.5"
Depth: 24.2"
Weight (Approximate): 50.71 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
