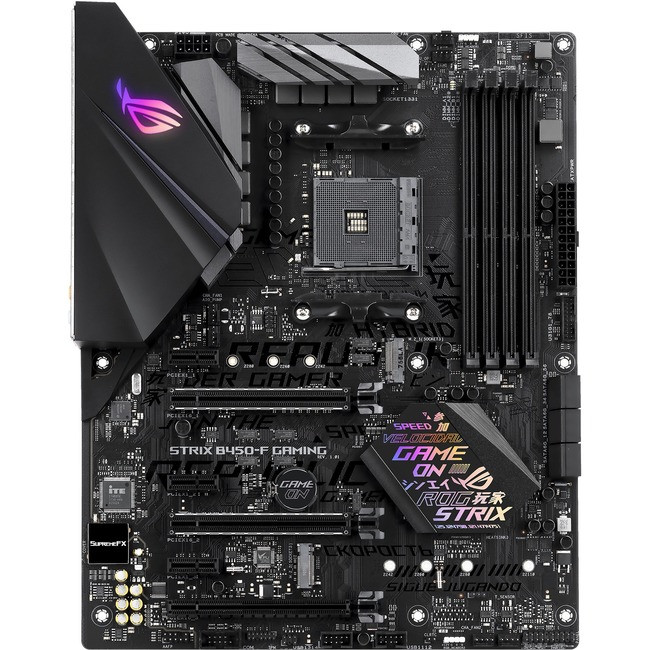

Asus ROG Strix B450-F GAMING Desktop Motherboard - AMD Chipset - Socket AM4 - ROGSTRIXB450FGAMING

Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: ROGSTRIXB450FGAMING
Manufacturer Website Address: http://usa.asus.com
Brand Name: Asus ROG
Product Line: Strix
Product Model: B450-F GAMING
Product Name: Strix B450-F GAMING Desktop Motherboard
Marketing Information:

AMD AM4 B450 ATX gaming motherboard with DDR4 3200MHz support, SATA 6Gbps, HDMI 2.0, dual NVMe M.2, USB 3.1 Gen 2, and Aura Sync RGB LED lighting

• AM4 socket: Ready for AMD Ryzen™ processors
• Fast memory and storage: Dual-channel DDR4 3200MHz (OC) and NVM Express® RAID supported.
• Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear.
• Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A connectors.
• Gaming networking: Intel Gigabit Ethernet, plus ASUS LANGuard and GameFirst technologies.
• 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor-made for your rig.
• Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action.
• Gamer's Guardian: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance.

SOLID HARDWARE SPECS FOR GAMING AND MORE

With ample power to fuel Ryzen's cores, plus cooling, storage and connectivity options for a range of hardware, the ROG Strix B450-F Gaming motherboard has everything you need to build on a budget or load up with high-performance components to game in the big leagues.

DESIGN, CUSTOMIZATION, AND SETUP

A host of design touches, customization options, comprehensive validation lists, and the most diverse ecosystem of components in the industry make building and personalizing a gaming rig with ROG Strix B450-F Gaming wonderfully easy.

TUNE YOUR RIG THE WAY YOU WANT

The ROG Strix B450-F Gaming motherboard features firmware controls and software utilities crafted for all skill levels, making first-time setup, tuning, and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.

THE POWER OF AMD

AM4 socket for AMD Ryzen™ 2nd Generation / Ryzen™ with Radeon™ Vega Graphics / Ryzen™ 1st Generation Processors

The AMD Ryzen™ processor is based on the innovative Zen core architecture and features up to eight cores and Radeon™ Vega integrated graphics. Together with dual-channel DDR4 memory, native 5Gbps USB 3.1 Gen 1 and 16 PCI Express® 3.0/2.0 lanes, these AMD AM4-socket processors deliver superb computing performance.

AMD B450 chipset

The AMD B450 chipset delivers high performance and flexibility with the latest AMD AM4-socket Ryzen™ processors. It also offers AMD StoreMI storage acceleration technology and provides two 10Gbps USB 3.1 Gen2 ports, two USB 3.1 Gen1 ports, and four 6Gbps SATA ports for faster data retrieval.

Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Total Processor Supported: 1
Processor Socket: Socket AM4
Processor Supported:

• Ryzen 3 PRO
• Ryzen 5 PRO
• Ryzen 7 PRO
• Ryzen 3
• Ryzen 5
• Ryzen 7

Memory
Number of Memory Slots: 4
Memory Form Factor:

• UDIMM
• DIMM

Maximum Memory: 64 GB
Memory Speed Supported:

• 3 GHz (O.C.)
• 2.67 GHz
• 2.40 GHz
• 3.20 GHz (O.C.)
• 2.13 GHz
• 2.80 GHz (O.C.)

Memory Technology: DDR4 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 10
• 1
• 0

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 6
Total Number of PCI Express Slots: 6
Number of PCI Express x1 Slots: 3
Number of PCI Express x16 Slots: 3
Interfaces/Ports
Total Number of USB Ports: 8
Number of USB 3.1 Ports: 6
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
Onboard Interfaces
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 6
Number of Onboard USB 3.1 Ports: 2
Physical Characteristics
Form Factor: ATX
Width: 12"
Depth: 9.6"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:

• RoHS
• WEEE

Country of Origin: China
