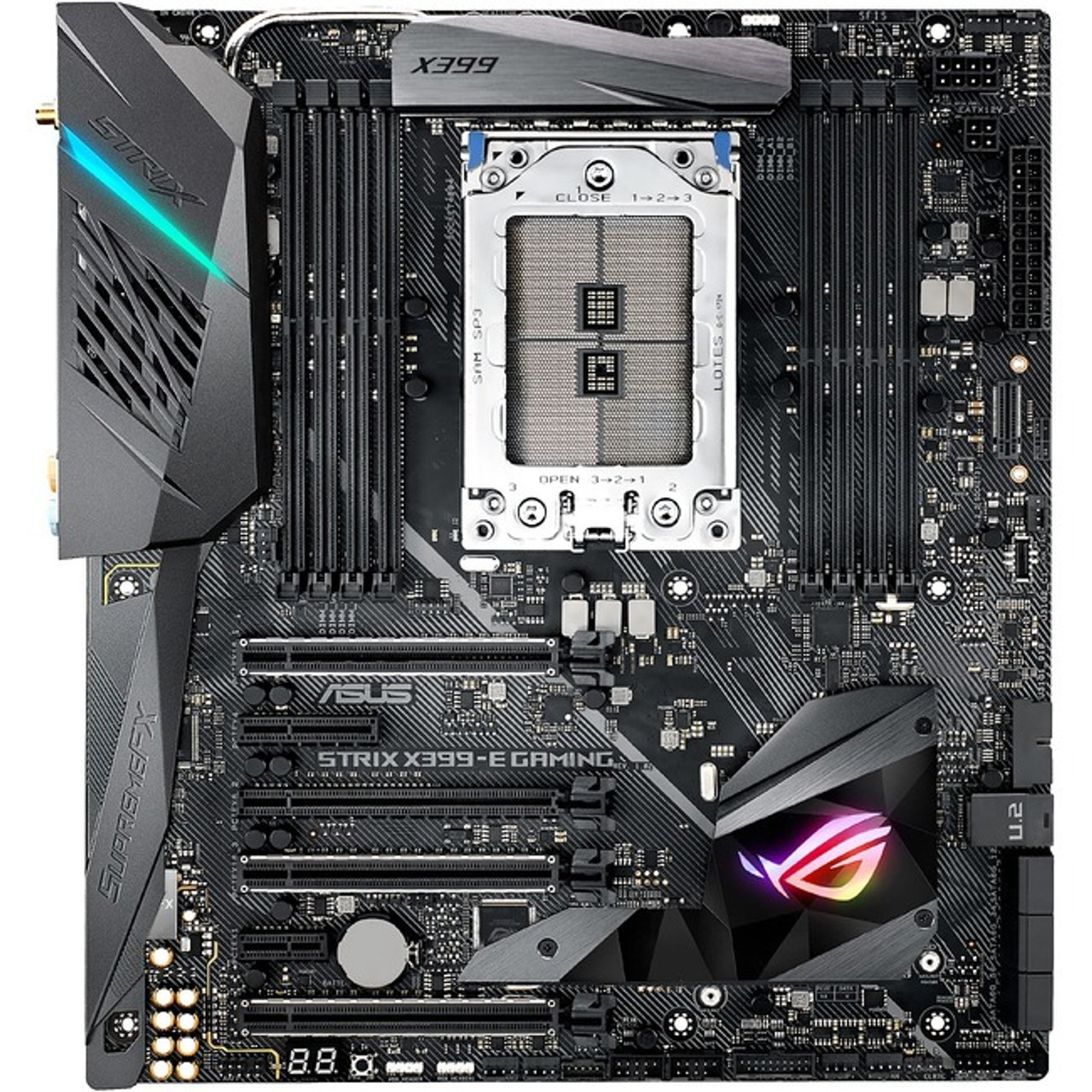

Asus ROG Strix X399-E GAMING Desktop Motherboard - AMD Chipset - Socket TR4 - ROG STRIX X399-E GAMING

Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: ROG STRIX X399-E GAMING
Manufacturer Website Address: http://usa.asus.com
Brand Name: Asus ROG
Product Line: Strix
Product Model: X399-E GAMING
Product Name: Strix X399-E GAMING Desktop Motherboard
Marketing Information:

ASUS ROG STRIX X399-E GAMING AMD Ryzen Threadripper TR4 DDR4 M.2 U.2 X399 EATX HEDT Motherboard with onboard 802.11AC WiFi, USB 3.1 Gen2, and AURA Sync RGB Lighting

• Powered by AMD® Ryzen™ Threadripper™ TR4 processors to maximize connectivity and speed with support for up to 128GB of DDR4 memory, dual NVMe M.2 drives, onboard 802.11AC WiFi , front side U.2 and front panel USB 3.1 Gen2 port
• 5-Way Optimization featuring Auto-Tuning and FanXpert 4 provides automatic overclocking profiles for maximum OC performance while AIO and watercooling headers deliver dynamic system cooling
• Three patent-pending SafeSlots feature an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs
• Unmatched Personalization with ASUS exclusive AURA Sync RGB lighting, two additional RGB headers and 3D-printing mounts to customize your build
• Industry-leading 8-channel HD audio with the ROG exclusive SupremeFX S1220A driven by Japanese capacitors

Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Total Processor Supported: 1
Processor Socket: Socket TR4
Processor Supported: Ryzen Threadripper
Memory
Number of Memory Slots: 8
Memory Form Factor:

• UDIMM
• DIMM

Maximum Memory: 128 GB
Memory Speed Supported:

• 3 GHz (O.C.)
• 3.33 GHz (O.C.)
• 2.80 GHz (O.C.)
• 3.60 GHz (O.C.)
• 3.47 GHz (O.C.)
• 2.67 GHz
• 2.40 GHz
• 3.20 GHz (O.C.)
• 2.13 GHz

Memory Technology: DDR4 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 10
• 1
• 0

Video
Onboard Video: No
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Gigabit Ethernet: Yes
Wireless LAN: Yes
I/O Expansions
Number of Total Expansion Slots: 6
Number of PCI Express x1 Slots: 1
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 4
Interfaces/Ports
Total Number of USB Ports: 10
Number of USB 3.1 Ports: 10
S/PDIF: Yes
Onboard Interfaces
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 9
Number of Onboard USB 3.1 Ports: 5
Physical Characteristics
Form Factor: Extended ATX
Width: 12"
Depth: 10.6"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
