Product Description

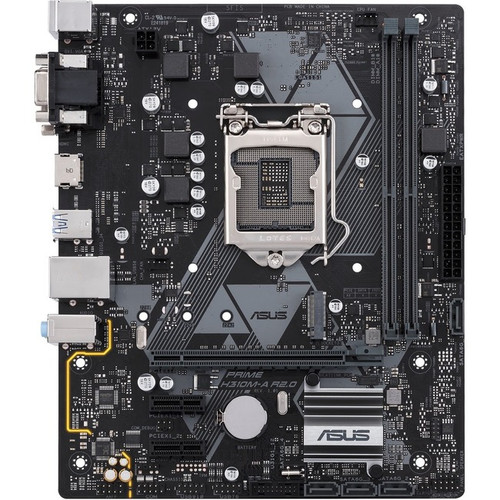

Asus Prime H310M-A R2.0/CSM Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - Prime H310M-A R2.0/CSM
Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: Prime H310M-A R2.0/CSM
Manufacturer Website Address: http://usa.asus.com
Brand Name: Asus
Product Line: Prime
Product Series: 300
Product Model: H310M-A R2.0/CSM
Product Name: Prime H310M-A R2.0/CSM Desktop Motherboard
Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported:
Memory
Number of Memory Slots: 2
Memory Form Factor:
Maximum Memory: 32 GB
Memory Speed Supported:
Memory Technology: DDR4 SDRAM
I/O Controller
Controller Type: Serial ATA/600
Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 3.1 Ports: 2
VGA: Yes
HDMI: Yes
DVI: Yes
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 6
Number of Onboard USB 3.1 Ports: 2
Onboard S/PDIF Header: Yes
Physical Characteristics
Form Factor: Micro ATX
Width: 8.9"
Depth: 7.3"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
Manufacturer: ASUS Computer International
Manufacturer Part Number: Prime H310M-A R2.0/CSM
Manufacturer Website Address: http://usa.asus.com
Brand Name: Asus
Product Line: Prime
Product Series: 300
Product Model: H310M-A R2.0/CSM
Product Name: Prime H310M-A R2.0/CSM Desktop Motherboard
Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported:
- Core i7
- Core i3
- Core i5
- Celeron
- Pentium
Memory
Number of Memory Slots: 2
Memory Form Factor:
- UDIMM
- DIMM
Maximum Memory: 32 GB
Memory Speed Supported:
- 2.67 GHz
- 2.40 GHz
- 2.13 GHz
Memory Technology: DDR4 SDRAM
I/O Controller
Controller Type: Serial ATA/600
Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 3.1 Ports: 2
VGA: Yes
HDMI: Yes
DVI: Yes
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 6
Number of Onboard USB 3.1 Ports: 2
Onboard S/PDIF Header: Yes
Physical Characteristics
Form Factor: Micro ATX
Width: 8.9"
Depth: 7.3"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
