Product Description

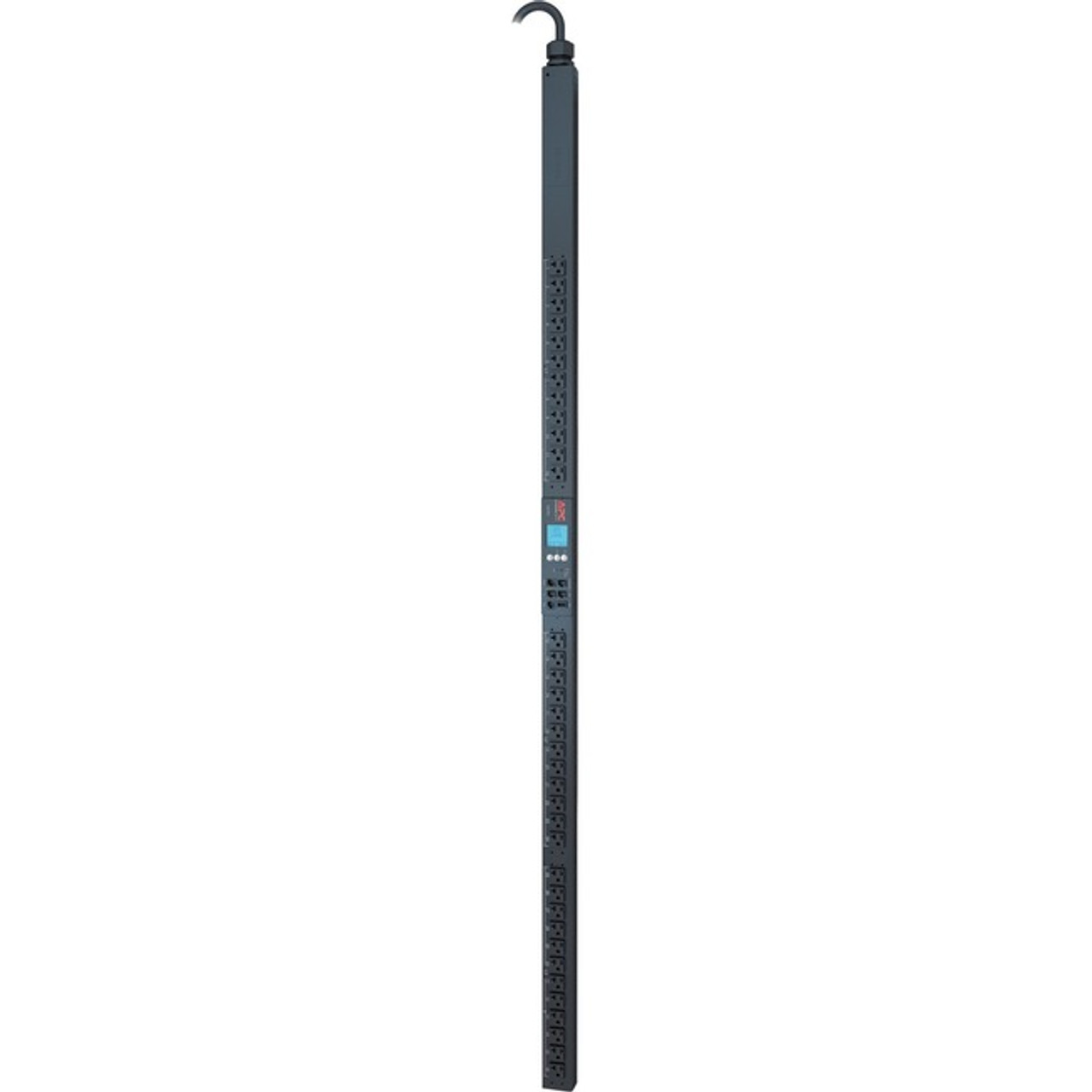

APC by Schneider Electric Metered Rack PDU - AP8862
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP8862
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Name: Metered Rack PDU
Marketing Information:
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Product Type: PDU
Technical Information
Input Receptacles: NEMA L21-20P
Output Receptacles: 36 x NEMA 5-20R
Protection Type: Circuit Protection
Power Description
Input Voltage: 120 V AC
Output Voltage: 230 V AC
Power Rating (VA): 5760 VA
Input Current: 20 A
Management
Management:
- Web
- SNMP
- Telnet
Physical Characteristics
Mounting Orientation: Horizontal/Vertical
Placement: Rack
Rack Height: 0U
Height: 70.5"
Width: 2.2"
Depth: 1.7"
Weight (Approximate): 13.29 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
- RoHS
- REACH
