Product Description

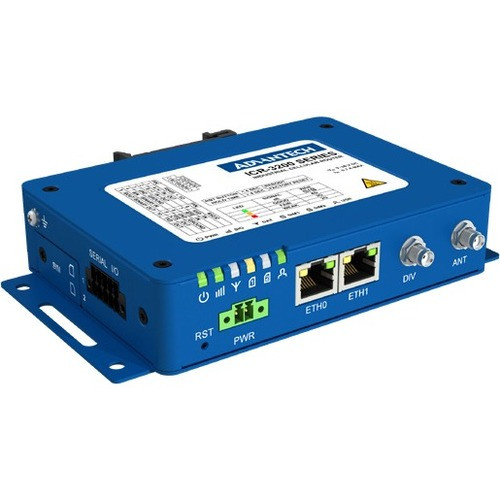

Advantech ICR-3241 2 SIM Cellular Modem/Wireless Router - ICR-3241
Specifications
Manufacturer: Advantech Co., Ltd
Manufacturer Part Number: ICR-3241
Manufacturer Website Address: http://www.advantech.com
Brand Name: Advantech
Product Model: ICR-3241
Product Name: Industrial IoT 4G LTE Router & Gateway
Marketing Information: The ICR-3200 LTE gateway is the perfect way to connect IP or serial devices to a cellular network. Industrial M2M and IoT applications include kiosks, industrial PCs, HMIs, traffic controllers, meters, UPS systems, and much more.
With LTE Cat.4 upload speeds of up to 50 Mbps and download speeds of up to 150 Mbps, the router provides ample bandwidth for high data demand applications such as CCTV or public Wi-Fi hotspots.
In addition to its two independent or switched Ethernet ports, serial ports RS232 and RS485, ICR-3200 has built-in digital I/O connectivity, backup real-time clock and sleep mode support. The device has two SIM readers protected by metallic cover for carrier failover redundancy. As an addition the router is ready to use internal eSIM.
Optional built-in GNSS chipset provides information about the accurate position of the router. An optional built-in Wi-Fi module is also available, with 802.11a,b,g,n,ac modes and MO-MIMO support is appropriate for on-board Wi-Fi transport applications.
The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic monitoring of the wireless and wired connections, automatic restart in case of connection losses, and a hardware watchdog that monitors the router status.
The ICR-3200 places intelligence at the network edge with an extremely powerful Cortex A8 CPU at 1GHz, 512 MB RAM and 4 GB EMMC FLASH memory in pSLC mode for a long-lifetime and critical industrial applications. 1.3 GB of memory space is allocated for customer SW applications and data. With open Linux platform and wide posibilities of programming customer SW applications in Python, C/C++ or browser-based flow editor Node-RED the ICR-3200 offers a real open development platform for Industrial IoT applications. The Advantech existing app library (User modules) with apps already developed to enhance specific router functionality including industrial protocol conversions and support of IoT platforms such as MS Azure, Cumulocity, ThingWorx and others are supported on the router.
ICR-3200 is easy to install using WebAccess/DMP, a full featured configuration and monitoring tool for mass deployment. The router also supports additional traffic and health monitoring software R-SeeNet.
Product Type: Modem/Wireless Router
Wireless Specifications
Broadband Transmission Technology: Cellular
Cellular Generation: 4G
Cellular Network Supported:
Cellular Data Connectivity Technology: LTE
Total Number of Antennas: 2
Interfaces/Ports
Number of Network (RJ-45) Ports: 2
Network & Communication
Ethernet Technology: Fast Ethernet
VPN Supported: Yes
Multi-SIM Supported: Yes
Number of SIM Card Supported: 2
SIM Size Supported: Mini
Physical Characteristics
Form Factor:
Height: 2.2"
Width: 4.9"
Depth: 3.8"
Weight (Approximate): 1.05 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
Manufacturer: Advantech Co., Ltd
Manufacturer Part Number: ICR-3241
Manufacturer Website Address: http://www.advantech.com
Brand Name: Advantech
Product Model: ICR-3241
Product Name: Industrial IoT 4G LTE Router & Gateway
Marketing Information: The ICR-3200 LTE gateway is the perfect way to connect IP or serial devices to a cellular network. Industrial M2M and IoT applications include kiosks, industrial PCs, HMIs, traffic controllers, meters, UPS systems, and much more.
With LTE Cat.4 upload speeds of up to 50 Mbps and download speeds of up to 150 Mbps, the router provides ample bandwidth for high data demand applications such as CCTV or public Wi-Fi hotspots.
In addition to its two independent or switched Ethernet ports, serial ports RS232 and RS485, ICR-3200 has built-in digital I/O connectivity, backup real-time clock and sleep mode support. The device has two SIM readers protected by metallic cover for carrier failover redundancy. As an addition the router is ready to use internal eSIM.
Optional built-in GNSS chipset provides information about the accurate position of the router. An optional built-in Wi-Fi module is also available, with 802.11a,b,g,n,ac modes and MO-MIMO support is appropriate for on-board Wi-Fi transport applications.
The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic monitoring of the wireless and wired connections, automatic restart in case of connection losses, and a hardware watchdog that monitors the router status.
The ICR-3200 places intelligence at the network edge with an extremely powerful Cortex A8 CPU at 1GHz, 512 MB RAM and 4 GB EMMC FLASH memory in pSLC mode for a long-lifetime and critical industrial applications. 1.3 GB of memory space is allocated for customer SW applications and data. With open Linux platform and wide posibilities of programming customer SW applications in Python, C/C++ or browser-based flow editor Node-RED the ICR-3200 offers a real open development platform for Industrial IoT applications. The Advantech existing app library (User modules) with apps already developed to enhance specific router functionality including industrial protocol conversions and support of IoT platforms such as MS Azure, Cumulocity, ThingWorx and others are supported on the router.
ICR-3200 is easy to install using WebAccess/DMP, a full featured configuration and monitoring tool for mass deployment. The router also supports additional traffic and health monitoring software R-SeeNet.
Product Type: Modem/Wireless Router
Wireless Specifications
Broadband Transmission Technology: Cellular
Cellular Generation: 4G
Cellular Network Supported:
- LTE 600
- LTE 700
- LTE 850
- LTE 1700
- LTE 1900
- WCDMA 850
- WCDMA 1700
- WCDMA 1900
Cellular Data Connectivity Technology: LTE
Total Number of Antennas: 2
Interfaces/Ports
Number of Network (RJ-45) Ports: 2
Network & Communication
Ethernet Technology: Fast Ethernet
VPN Supported: Yes
Multi-SIM Supported: Yes
Number of SIM Card Supported: 2
SIM Size Supported: Mini
Physical Characteristics
Form Factor:
- DIN Rail Mountable
- Wall Mountable
Height: 2.2"
Width: 4.9"
Depth: 3.8"
Weight (Approximate): 1.05 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
- RoHS
- WEEE
- REACH
