Product Description

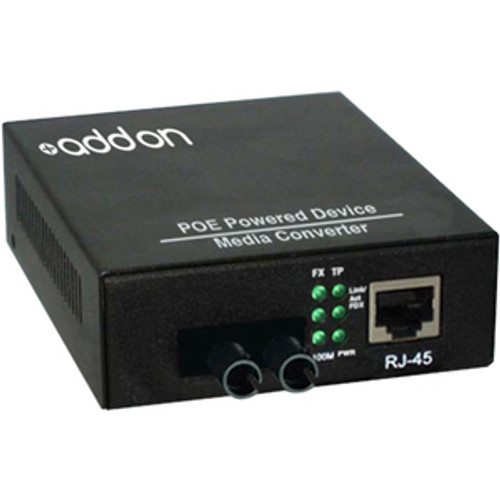

AddOn 10/100Base-TX(RJ-45) to 100Base-FX(ST) MMF 1310nm 2km POE Media Converter - ADD-FMCPD-FX-ST
Specifications
Manufacturer: AddOn
Manufacturer Part Number: ADD-FMCPD-FX-ST
Manufacturer Website Address: http://www.addoncomputer.com
Brand Name: AddOn
Product Name: 100Base-TX To 100Base-FX ST MM 1310nm POE Pwd Media Converter
Marketing Information: ADD-FMCPD-FX-ST is a Media Converter that converts a 100Base-TX(RJ45) to 100Base-FX(ST) via a 1310nm multi-mode fiber (MMF) ST connector, which allows distance reach up to 2km. ADD-FMCPD-FX-ST provides a cost effective conversion from 100Base Copper to 100Base-FX fiber, while extending the network reach beyond the 100m reach limitation of copper.
The ADD-FMCPD product series of media converters allows two types of network segments to be connected easily. The DC/DC powered PoE media converter is a Powered Device (PD) that complies with IEEE802.3af standard, which combines data transferred over a fiber optic link with a DC/DC converter, accepting power from IEE802.3af Power Sourcing Equipment (PSE) over CAT5 and up UTP cable (cable length up to 100meters/330feets).
Addoncomputer.com Media Converters and Network Interface Cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our ADDON CERTIFICATION TEST Program, we can guarantee your product will work right the first time.
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 2
Network (RJ-45): Yes
DVI: No
USB: No
Management Port: No
Number of PoE (RJ-45) Ports: 1
Number of ST Ports: 1
Media & Performance
Media Type Supported:
Fiber Mode Supported: Multi-mode
Maximum Distance Supported: 1.24 Mile
Fiber Optic Cable Standard:
Network & Communication
Ethernet Technology: Fast Ethernet
Network Technology:
Physical Characteristics
Form Factor: External
Height: 1"
Width: 3"
Depth: 4"
Weight (Approximate): 3.20 oz
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
Manufacturer: AddOn
Manufacturer Part Number: ADD-FMCPD-FX-ST
Manufacturer Website Address: http://www.addoncomputer.com
Brand Name: AddOn
Product Name: 100Base-TX To 100Base-FX ST MM 1310nm POE Pwd Media Converter
Marketing Information: ADD-FMCPD-FX-ST is a Media Converter that converts a 100Base-TX(RJ45) to 100Base-FX(ST) via a 1310nm multi-mode fiber (MMF) ST connector, which allows distance reach up to 2km. ADD-FMCPD-FX-ST provides a cost effective conversion from 100Base Copper to 100Base-FX fiber, while extending the network reach beyond the 100m reach limitation of copper.
The ADD-FMCPD product series of media converters allows two types of network segments to be connected easily. The DC/DC powered PoE media converter is a Powered Device (PD) that complies with IEEE802.3af standard, which combines data transferred over a fiber optic link with a DC/DC converter, accepting power from IEE802.3af Power Sourcing Equipment (PSE) over CAT5 and up UTP cable (cable length up to 100meters/330feets).
Addoncomputer.com Media Converters and Network Interface Cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our ADDON CERTIFICATION TEST Program, we can guarantee your product will work right the first time.
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 2
Network (RJ-45): Yes
DVI: No
USB: No
Management Port: No
Number of PoE (RJ-45) Ports: 1
Number of ST Ports: 1
Media & Performance
Media Type Supported:
- Optical Fiber
- Twisted Pair
Fiber Mode Supported: Multi-mode
Maximum Distance Supported: 1.24 Mile
Fiber Optic Cable Standard:
- 62.5/125 µm
- 50/125 µm
Network & Communication
Ethernet Technology: Fast Ethernet
Network Technology:
- 10/100Base-TX
- 100Base-FX
Physical Characteristics
Form Factor: External
Height: 1"
Width: 3"
Depth: 4"
Weight (Approximate): 3.20 oz
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
